U5 Charge-Pump Regulator Overview

flux

2:17

General (prev)
Project
BOM
File
Web
U5
Here’s a detailed overview of U5 in your design:
Component: U5 – LM27762DSSR charge-pump switching regulator
1. Purpose & Core Function
  • Generates both a regulated positive rail (OUT⁺) and negative rail (OUT⁻) from a single input (VIN).
  • Ideal when you need small bipolar supplies (e.g. ±2.5 V, ±5 V) but don’t want an inductor-based solution.
2. Key Features
  • Dual charge-pump architecture with internal 2 MHz oscillator and MOSFET switch array.
  • Adjustable outputs via external resistor dividers on FB⁺ and FB⁻ pins.
  • Built-in LDO regulators for low-noise, tightly regulated rails.
  • Power-Good (PGOOD) flag (open-drain) to indicate when both outputs are in regulation.
  • Shutdown pins (EN⁺, EN⁻) enable individual disabling of each pump, reducing quiescent current.
  • Capable of up to 250 mA per output.
3. How It Operates in the Circuit
  1. Oscillator & Pumping Stage
    • A 2 MHz clock drives internal switches that shuttle charge into flying capacitors (C1+, C1–).
  2. Switch-to-Output Stage
    • Pumped voltage is steered through an internal LDO stage to produce regulated OUT⁺ and OUT⁻.
  3. Feedback & Regulation
    • External resistor dividers on FB⁺/FB⁻ set the exact output voltages.
    • The chip adjusts switch duty-cycle and LDO gate drive to maintain regulation.
  4. Monitoring & Control
    • PGOOD asserts low when both rails are within regulation bands.
    • EN pins allow power-down or sequencing.
4. Common Applications
  • Hi-Fi audio headphone amplifiers (bias rails)
  • Op-amp power biasing in precision analog circuits
  • Powering data converters (ADC/DAC supply rails)
  • Interface supplies for mixed-signal or wireless modules
  • Hand-held instrumentation where ± rails are needed without large inductors
5. Notable Characteristics
  • High switching frequency (2 MHz) allows use of small SMD capacitors (0603/0805).
  • Low-ESR pump caps yield better efficiency and lower output impedance.
  • Exposed pad WSON package for superior thermal performance.
  • Wide temperature range (–40 °C to +85 °C).
6. Series & Family Context
The LM27762 belongs to TI’s family of high-frequency, dual-output charge-pump regulators.
  • Fixed-output variants (e.g. LM27762-5.0) provide factory-set ±5 V with no external divider.
  • Adjustable versions (LM27762DSSR) let you pick any ± output within the device’s range (typically ±1.5 V to ±6 V).
  • Key differences across the family:
    • Output voltage options (fixed vs. adjustable)
    • Maximum output current (200–300 mA)
    • Package styles (WSON vs. QFN)
  • Use-case trade-offs:
    • Choose fixed versions for simpler BOM when only one bipolar voltage is needed.
    • Choose the adjustable LM27762DSSR for flexibility in mixed-supply or multi-rail systems.
By using U5, your signal generator gains compact, inductor-less ± rails that are essential for driving the op-amps (e.g., U1–U3) and delivering clean, stable waveforms.
Specify output voltages
Add pump caps
Set shutdown behavior
Enable PGOOD pin
Thermal considerations
227 days

Ready.

Sign up to send
how does the feedback loop work on U1?
nico

nico

@copilot how does the feedback loop work on U1?
2y

copilot

The feedback on the Operational Amplifier (Op-Amp) U1 is implemented through a resistor R1 and a resistor R3.
In this case, U1 is configured in a non-inverting amplifier configuration. The input signal is applied to the non-inverting input (U1:+), while the output (U1:OUTPUT) is fed back to the inverting input (U1:-) via resistors R1 and R3, forming a voltage divider.
The feedback helps to stabilize the amplifier’s gain and improve its performance. It works as follows:
  • The Op-Amp produces an output signal in response to the difference between its input signals.
  • A portion of the output signal is fed back to the inverting input via resistors R3 and R1 that act as voltage dividers, hence the name 'feedback'.
  • Since the feedback signal is in phase with the input, it counteracts any increase or decrease in the input signal to maintain a stable output.
This feedback configuration gives us a voltage gain of:
Gain=1+R3R1 Gain = 1 + \frac{R3} {R1}
The exact values of the resistors (R3 and R1) in the divider help define the amplifier's closed-loop gain. Thus, by adjusting R1 or R3, you can control the gain of the op-amp circuit.
Also, in this case, R1 is connected to the ground, forming negative feedback, which is essential for amplifier stability, accuracy, and predictability. Negative feedback tends to decrease the output (due to the inverse phase) and is used in most amplifiers to improve bandwidth and distortion while stabilizing the gain.
2y
Someone is typing...
what is c2 accomplishing in the feedback loop?
nico

nico

@copilot what is c2 accomplishing in the feedback loop?
2y

copilot

The capacitor C2, according to the netlist, is directly connected between the output (OUTPUT pin) and the inverting input (- pin) of the operational amplifier U2. This setup constitutes a feedback loop.
C2 effectively operates as an integral component of a high-pass filter which is part of the configuration of the op-amp U2. In the feedback loop of an amplifier, having a capacitor allows the circuit to preferentially amplify higher frequencies more than lower frequencies, creating a 'high-pass' effect.
The exact cut-off frequency of the high-pass filter is determined by the values of the capacitor C2 and the resistor R5, in line with the formula:
fc=12πR5C2 f_{c} = \frac{1} {2 \pi R5 C2}
Where:
  • $f_{c} $ is the cut-off frequency,
  • $R5$ is the resistance connected to the capacitor in feedback loop, and
  • $C2$ is the capacitance value of the capacitor in the feedback loop.
In the Fourier domain, the phase of the output signal is shifted by 90 degrees by the capacitor which can be useful for specific applications where a phase shift or waveform shaping is required. However, more information about the whole circuit and its intended application is needed to say more about the exact influence and role of C2 in this circuit.
2y
Someone is typing...
3
-2.7V
+2.7V
+5V
VBUS
+5V
+5V
R9
Resistance
51.1k Ω
C20
Capacitance
10u F
C6
Capacitance
10u F
R10
Resistance
41.2k Ω
C21
Capacitance
4.7u F
R14
Resistance
Resistance
Resistance
5.1k Ω
C24
Capacitance
4.7u F
C4
Capacitance
4.7u F
C5
Capacitance
1u F
R12
Resistance
49.9k Ω
R11
Resistance
41.2k Ω
C19
Capacitance
0.1u F
R13
Resistance
Resistance
Resistance
5.1k Ω
U5
Manufacturer Part Number
LM27762DSSR
CC2
CC1
D1
CC2
RV1
Resistance
100k Ω
Square_wave
  • Ground
    Ground
    A common return path for electric current. Commonly known as ground.
    jharwinbarrozo
    20.5M
  • Net Portal
    Net Portal
    Wirelessly connects nets on schematic. Used to organize schematics and separate functional blocks. To wirelessly connect net portals, give them same designator. #portal
    jharwinbarrozo
    43.0M
  • Power Net Portal
    Power Net Portal
    Wirelessly connects power nets on schematic. Identical to the net portal, but with a power symbol. Used to organize schematics and separate functional blocks. To wirelessly connect power net portals, give them the same designator. #portal #power
    jharwinbarrozo
    11.4M
  • Generic Resistor
    Generic Resistor
    A generic fixed resistor for rapid developing circuit topology. Save precious design time by seamlessly add more information to this part (value, footprint, etc.) as it becomes available. Standard resistor values: 1.0Ω 10Ω 100Ω 1.0kΩ 10kΩ 100kΩ 1.0MΩ 1.1Ω 11Ω 110Ω 1.1kΩ 11kΩ 110kΩ 1.1MΩ 1.2Ω 12Ω 120Ω 1.2kΩ 12kΩ 120kΩ 1.2MΩ 1.3Ω 13Ω 130Ω 1.3kΩ 13kΩ 130kΩ 1.3MΩ 1.5Ω 15Ω 150Ω 1.5kΩ 15kΩ 150kΩ 1.5MΩ 1.6Ω 16Ω 160Ω 1.6kΩ 16kΩ 160kΩ 1.6MΩ 1.8Ω 18Ω 180Ω 1.8KΩ 18kΩ 180kΩ 1.8MΩ 2.0Ω 20Ω 200Ω 2.0kΩ 20kΩ 200kΩ 2.0MΩ 2.2Ω 22Ω 220Ω 2.2kΩ 22kΩ 220kΩ 2.2MΩ 2.4Ω 24Ω 240Ω 2.4kΩ 24kΩ 240kΩ 2.4MΩ 2.7Ω 27Ω 270Ω 2.7kΩ 27kΩ 270kΩ 2.7MΩ 3.0Ω 30Ω 300Ω 3.0KΩ 30KΩ 300KΩ 3.0MΩ 3.3Ω 33Ω 330Ω 3.3kΩ 33kΩ 330kΩ 3.3MΩ 3.6Ω 36Ω 360Ω 3.6kΩ 36kΩ 360kΩ 3.6MΩ 3.9Ω 39Ω 390Ω 3.9kΩ 39kΩ 390kΩ 3.9MΩ 4.3Ω 43Ω 430Ω 4.3kΩ 43KΩ 430KΩ 4.3MΩ 4.7Ω 47Ω 470Ω 4.7kΩ 47kΩ 470kΩ 4.7MΩ 5.1Ω 51Ω 510Ω 5.1kΩ 51kΩ 510kΩ 5.1MΩ 5.6Ω 56Ω 560Ω 5.6kΩ 56kΩ 560kΩ 5.6MΩ 6.2Ω 62Ω 620Ω 6.2kΩ 62KΩ 620KΩ 6.2MΩ 6.8Ω 68Ω 680Ω 6.8kΩ 68kΩ 680kΩ 6.8MΩ 7.5Ω 75Ω 750Ω 7.5kΩ 75kΩ 750kΩ 7.5MΩ 8.2Ω 82Ω 820Ω 8.2kΩ 82kΩ 820kΩ 8.2MΩ 9.1Ω 91Ω 910Ω 9.1kΩ 91kΩ 910kΩ 9.1MΩ #generics #CommonPartsLibrary
    jharwinbarrozo
    1.5M
  • Generic Capacitor
    Generic Capacitor
    A generic fixed capacitor ideal for rapid circuit topology development. You can choose between polarized and non-polarized types, its symbol and the footprint will automatically adapt based on your selection. Supported options include standard SMD sizes for ceramic capacitors (e.g., 0402, 0603, 0805), SMD sizes for aluminum electrolytic capacitors, and through-hole footprints for polarized capacitors. Save precious design time by seamlessly add more information to this part (value, footprint, etc.) as it becomes available. Standard capacitor values: 1.0pF 10pF 100pF 1000pF 0.01uF 0.1uF 1.0uF 10uF 100uF 1000uF 10,000uF 1.1pF 11pF 110pF 1100pF 1.2pF 12pF 120pF 1200pF 1.3pF 13pF 130pF 1300pF 1.5pF 15pF 150pF 1500pF 0.015uF 0.15uF 1.5uF 15uF 150uF 1500uF 1.6pF 16pF 160pF 1600pF 1.8pF 18pF 180pF 1800pF 2.0pF 20pF 200pF 2000pF 2.2pF 22pF 20pF 2200pF 0.022uF 0.22uF 2.2uF 22uF 220uF 2200uF 2.4pF 24pF 240pF 2400pF 2.7pF 27pF 270pF 2700pF 3.0pF 30pF 300pF 3000pF 3.3pF 33pF 330pF 3300pF 0.033uF 0.33uF 3.3uF 33uF 330uF 3300uF 3.6pF 36pF 360pF 3600pF 3.9pF 39pF 390pF 3900pF 4.3pF 43pF 430pF 4300pF 4.7pF 47pF 470pF 4700pF 0.047uF 0.47uF 4.7uF 47uF 470uF 4700uF 5.1pF 51pF 510pF 5100pF 5.6pF 56pF 560pF 5600pF 6.2pF 62pF 620pF 6200pF 6.8pF 68pF 680pF 6800pF 0.068uF 0.68uF 6.8uF 68uF 680uF 6800uF 7.5pF 75pF 750pF 7500pF 8.2pF 82pF 820pF 8200pF 9.1pF 91pF 910pF 9100pF #generics #CommonPartsLibrary
    jharwinbarrozo
    1.5M
  • Generic Inductor
    Generic Inductor
    A generic fixed inductor for rapid developing circuit topology. *You can now change the footprint and 3D model at the top level anytime you want. This is the power of #generics
    jharwinbarrozo
    15.1k
  • Terminal
    Terminal
    An electrical connector acting as reusable interface to a conductor and creating a point where external circuits can be connected.
    natarius
  • RMCF0805JT47K0
    RMCF0805JT47K0
    47 kOhms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200 Thick Film #forLedBlink
    jharwinbarrozo
    1.2M
  • 875105359001
    875105359001
    10uF Capacitor Aluminum Polymer 20% 16V SMD 5x5.3mm #forLedBlink #commonpartslibrary #capacitor #aluminumpolymer #radialcan
    jharwinbarrozo
    1.2M
  • CTL1206FYW1T
    CTL1206FYW1T
    Yellow 595nm LED Indication - Discrete 1.7V 1206 (3216 Metric) #forLedBlink
    jharwinbarrozo
    1.1M

Inspect

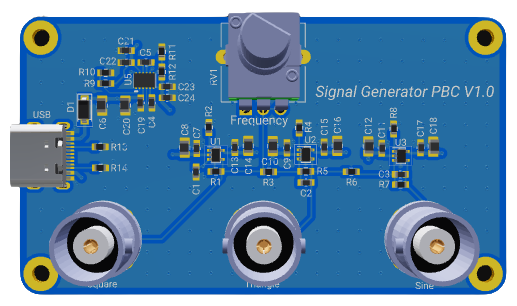

Signal Generator
