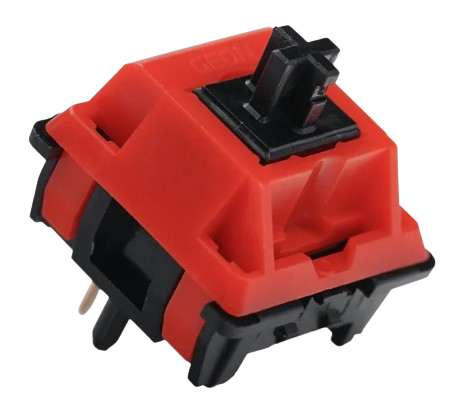

Schematic Symbol for Raptor MX Gaming Switch: Geonworks Raptor MX...

STL File Analysis Assistance

1:04

General

Chat History

Project

Help

Model

Reading docs for: "How to import an STL or STEP 3D model and attach it to a PCB footprint or board in Flux, and how to align it for mounting hole placement."

Reading docs for: "Attach or import a custom 3D model (STL/STEP/OBJ) into a PCB in Flux and align it for mechanical references or mounting holes."

Reading docs for: "How to add/import a custom 3D model file (STEP/STL/GLB) as an asset in Flux PCB editor and place it on the board"

Anladım: STL modeli PCB’nize ekleyip montaj deliği referansı olarak kullanmak istiyorsunuz. Flux dokümantasyonunda STL/3D model içe aktarma adımlarına dair doğrudan bir yönerge bulamadım. Bu muhtemelen Flux’ta STL model içe aktarma özelliğinin şu an bulunmadığı anlamına geliyor.

İlgili bulunan içerikler:
- “External assets” sayfası, desteklenen 3D varlık formatları olarak STEP, STP, DXF, GLB’yi listeliyor; STL geçmiyor. Alıntı: “Currently available formats are: .step, .stp, .dxf, .glb …” Source
- PCB Editor FAQ, 3D model “export” konusunu anlatıyor (STL/STEP dışa aktarma), ancak içe aktarma yok. Source

İsterseniz:

Flux Dokümantasyonu: https://docs.flux.ai/Introduction/the-flux-method
Tüm dokümantasyon araması: https://docs.flux.ai/?s=3D%20model
Flux User Community: https://www.flux.ai/p/slack-community

Eğer montaj deliği yerleşimini bu modele göre belirlemeniz gerekiyorsa, bana gerekli ölçüleri (ör. delik çapı, delikler arası merkez mesafesi, PCB referans noktasına göre offsetler) yazın; tasarımda doğru yerlere delik/keepout yerleşimi konusunda yardımcı olayım. Alternatif olarak, modelinizin STEP sürümü varsa, onu paylaşmanız süreci hızlandırır.

73 days

emreturkmen-hub

step nasıl yükleyeceğim

73 days

flux

0:26

General

Chat History

Project

Help

Reading docs for: "How to import a STEP (.step, .stp) 3D model into a Flux PCB project and align it for mounting holes or mechanical reference. Steps to add external assets, attach 3D model to board or footprint, and position/orient/scale it. Also how to place mounting holes and keepouts using the model as reference."

İstediğiniz: STEP dosyasını Flux’ta projeye eklemek. Flux dokümantasyonunda konuyla en ilgili kayıt şöyle diyor:

“External assets are used to leverage existing files (STEP, SVG, KICAD_MOD, etc) to improve Flux designs. Currently available formats are:

.step, .stp, .dxf, .glb: 3D models
.kicad or .kicad_mod: Importing Components from Other EDA Tools to Flux
.svg: Symbols, PCB outline and Creating Custom Shapes in Flux
.dxf: PCB outline and Creating Custom Shapes in Flux” Kaynak

Ek adım ister misiniz?

STEP modelini 3D varlık (asset) olarak ekleyip kart üzerinde referans olarak konumlandırma.
Ardından montaj deliklerini yerleştirme ve hizalama.
