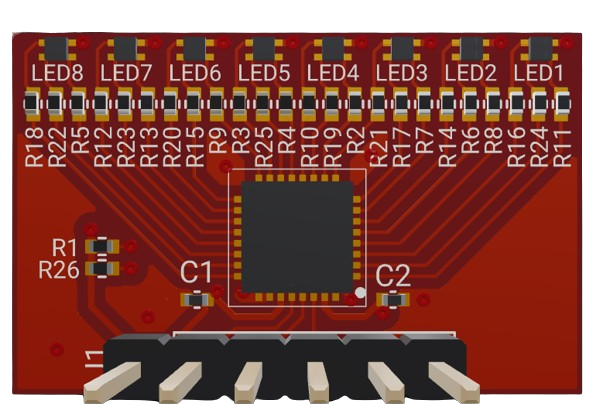

Schematic for IO Expander RGB LEDs: Design of an RGB LED control...

Copilot

Welcome to the all-new Copilot

Use Copilot to brainstorm projects, search the library, place and connect components, and more. Click a prompt or write your own to get started. Learn More

Explain

Write Project Description

Find Issues

Test Plan

do I need decoupling capacitors near U1?

vasy_skral

@copilot do I need decoupling capacitors near U1?

copilot

Yes, you should definitely have decoupling capacitors near U1 for stable operation. Decoupling capacitors help filter out high-frequency noise that can cause erratic behavior in ICs. Typically, you'd place a 0.1 µF ceramic capacitor close to the power supply pins ($V_{CCP}$ and $V_{CCI}$ in your case).

Here's how you can connect them:

Connections

0.1 µF Decoupling Capacitor for $V_{CCP}$
- Connect $C1:1$ to $U1:V_{CCP}$
- Connect $C1:2$ to GND
0.1 µF Decoupling Capacitor for $V_{CCI}$
- Connect $C2:1$ to $U1:V_{CCI}$
- Connect $C2:2$ to GND

Suggested Designators (assuming C1 and C2 for capacitors)

C1: 0.1 µF Ceramic Capacitor
C2: 0.1 µF Ceramic Capacitor

Full Net Connections:

Connect $C1:1$ to $U1:V_{CCP}$
Connect $C1:2$ to GND
Connect $C2:1$ to $U1:V_{CCI}$
Connect $C2:2$ to GND

Do you need additional guidance or clarification on any part of this?

Someone is typing...

LED2_R

LED2

LED8_R

TCA_RST

LED1_G

LED8_B

SDA

LED3_G

LED3_B

R17

Resistance

60 Ω

+3V3

R26

Resistance

4.7k Ω

+3V3

TCA_INT

LED2_G

SCL

LED1_R

LED6_R

+3V3

LED5_G

LED1_G

Resistance

15 Ω

LED6_B

LED2_B

+3V3

Resistance

60 Ω

+3V3

R19

Resistance

60 Ω

+3V3

Resistance

4.7k Ω

LED1_B

TCA_RST

+3V3

LED3

+3V3

LED4_G

LED3_R

R16

Resistance

65 Ω

LED4_R

LED2_R

Capacitance

0.1u F

LED3_G

Resistance

15 Ω

Capacitance

0.1u F

LED2_B

LED5_B

LED4_B

LED1_B

LED2_G

LED3_B

+3V3

SDA

R24

Resistance

60 Ω

LED4_R

LED5_R

+3V3

TCA_INT

SCL

LED4_B

LED3_R

Resistance

15 Ω

LED6_G

LED4

LED8_G

LED1_R

R11

Resistance

15 Ω

+3V3

LED4_G

SDA

LED7_G

R14

Resistance

65 Ω

LED1

R10

Resistance

65 Ω

R21

Resistance

65 Ω

LED7_B

+3V3

LED7_R
