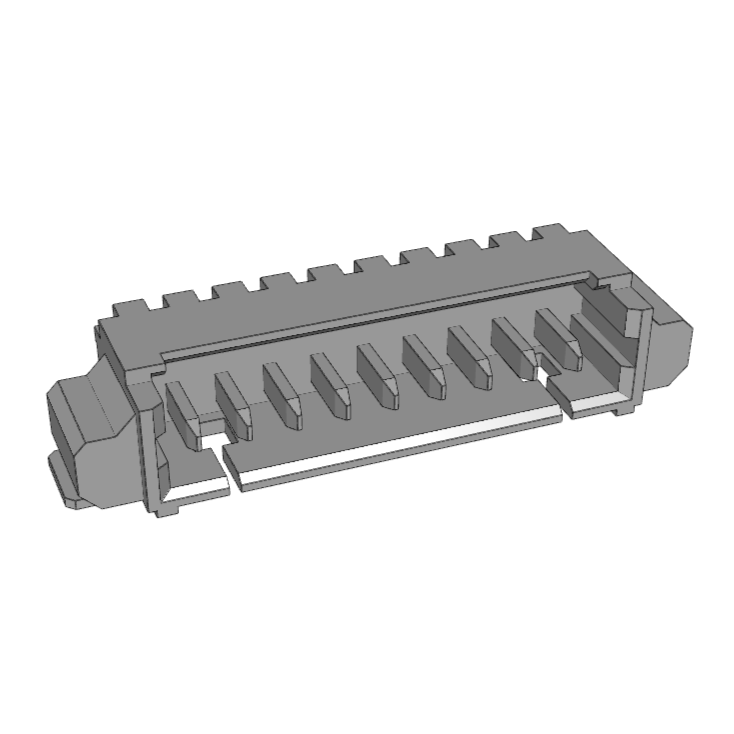

Schematic Symbol for 0532610971: Connector Header Surface Mount,...

Hiding GND_1 Pin Label

thanawats

why I cannot remove property

260 days

flux

0:29

General (prev)

Project

Help

Here’s how you remove or hide a property in Flux:

Select the element (part, net, etc.) whose property you want to remove.
In the right-side Inspector panel, scroll down to Properties.
To hide a property from the canvas, click the eye icon next to it.
To delete a custom property entirely, click Edit, then click the trash-can icon for that property.

For full step-by-step details see:
https://docs.flux.ai/flux/reference/reference-inspector-properties

260 days

Ready.
