Part Review and Datasheet Validation
Review all available part information (MPN, package, pin count, description, properties). If no datasheet URL is already set, search the web for the official datasheet and update the part's Datasheet property with the URL. Then cross-check the schematic symbol, footprint, and pin descriptions against the datasheet. Summarize key specs and flag any mismatches.
Thought for 5 sec
I’ll inspect the part metadata, look for an official datasheet if missing, update the Datasheet property if needed, then compare symbol/footprint/pins against the sourced datasheet and report mismatches.
Thought for 2 mins 5 sec
The part already has an official Sensata/Crydom datasheet URL set. I’m using alternate datasheet extraction/search paths because direct PDF scraping failed.
Worked for 4 mins 30 sec

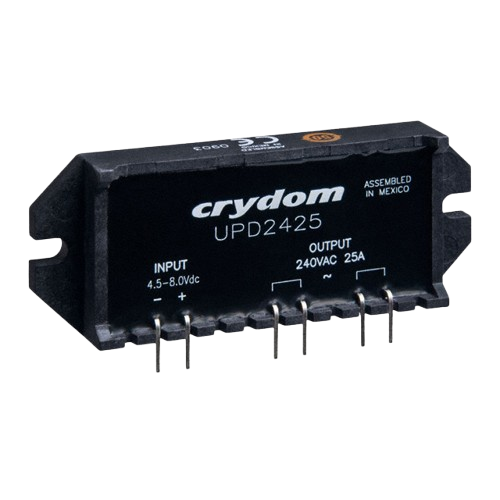

Reviewed UPD2425 against the official Sensata/Crydom datasheet; the Datasheet URL was already set, so I did not change it. Pin count and pin numbering match, but I flagged footprint risks: pad units/scale look inconsistent, pads appear to inherit SMD/default hole behavior, and pin descriptions/package metadata need improvement.
Full report: UPD2425 Part Review
Suggested next steps:
- Fix the footprint to true through-hole pads for 0.032 in square pins.
- Add pin descriptions and clearer output-pair labeling.
- Add package/case metadata: 6-SIP / PCB through-hole SSR.
- Run a follow-up part review after edits.
Fix footprint and review
Fix footprint issues
Add pin metadata
Run review again
Check high-current layout
