Part Datasheet Audit
Review all available part information (MPN, package, pin count, description, properties). If no datasheet URL is already set, search the web for the official datasheet and update the part's Datasheet property with the URL. Then cross-check the schematic symbol, footprint, and pin descriptions against the datasheet. Summarize key specs and flag any mismatches.
Thought for 5 sec
I’ll audit the part metadata, find and attach the official datasheet if needed, then verify the symbol, footprint, and pin definitions against it and report any mismatches.
Thought for 3 mins 24 sec
Audit complete. The existing Datasheet property already points to the official Switchcraft RA_PC10 Series drawing, so no update was required.
- MPN/manufacturer: RAPC10S, Switchcraft Inc. — correct

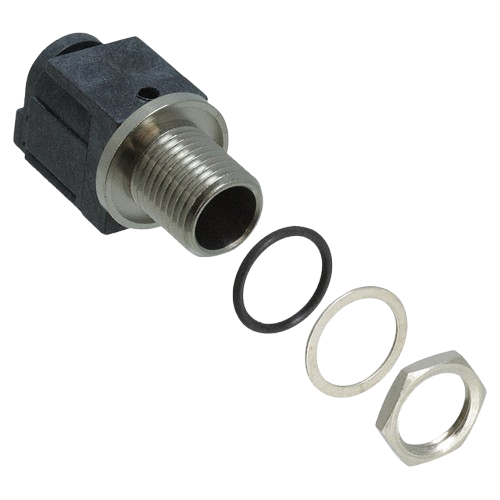

- Type/package: Right-angle, through-hole, sealed DC power jack; 2.0 mm center pin; 3 terminals
- Ratings: 24 V, 11 A, 15 mΩ contact resistance, 250 V dielectric withstand, 1000 MΩ insulation resistance
- Variant: Silver-plated terminals, O-ring fitted, no PCB locating post
- Footprint: Pad positions and slotted holes match the manufacturer’s recommended PCB layout: sleeve at 0 mm, center pin at 6.29 mm, and shunt offset 3.27 × 4.80 mm
- Pin mapping: Pad 1 = SLEEVE, pad 2 = center PIN, pad 3 = SHUNT — correct
Flags: No electrical or footprint mismatch found. Metadata is incomplete: no explicit package, pin-count, connector gender, ratings, or detailed pin-description properties are stored. The symbol terminals are passive and correctly named, but do not explicitly describe the normally closed shunt behavior.
Complete part metadata
Document shunt behavior
Verify 3D alignment
Review panel mounting
