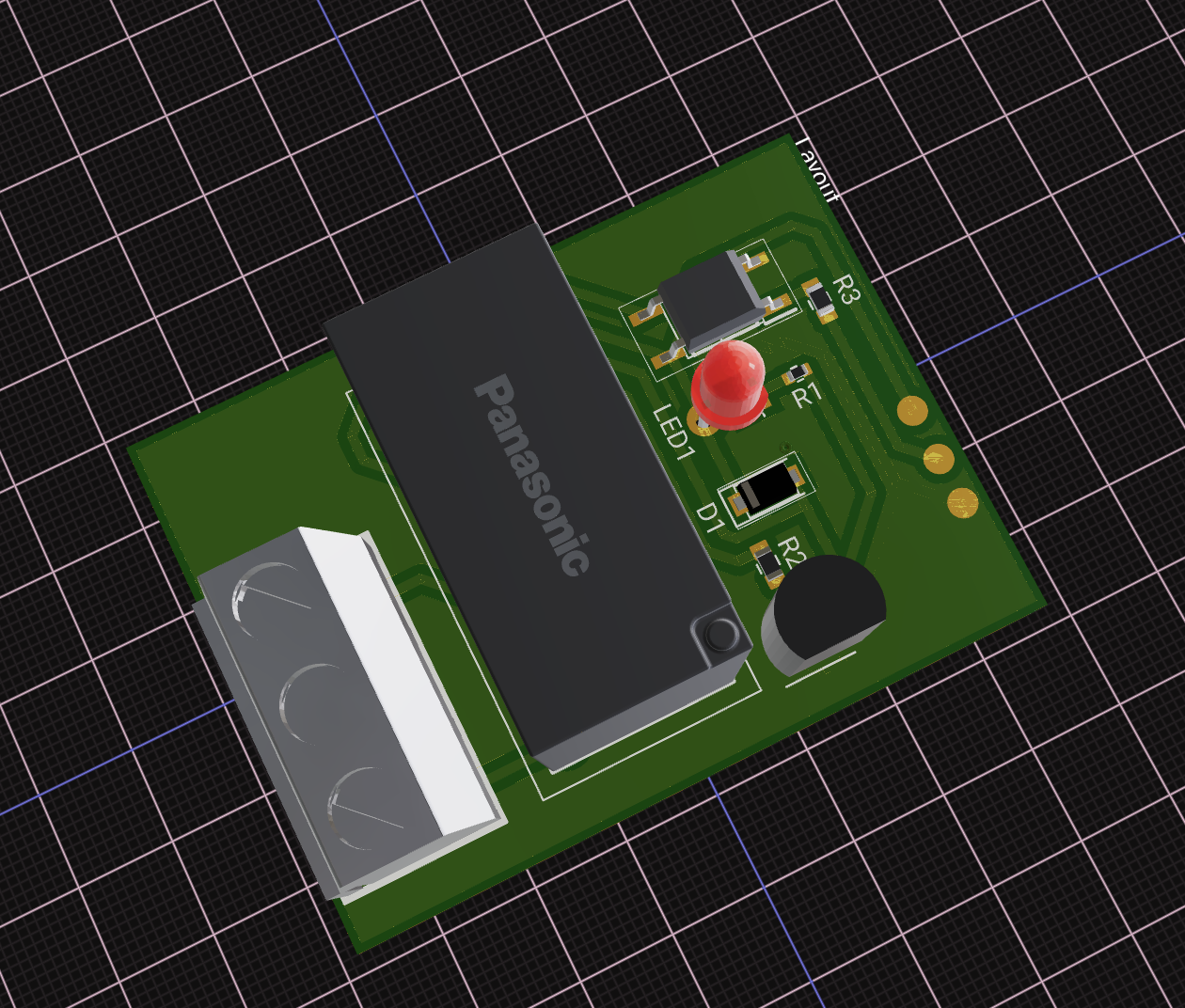

Diode with Relay Coil: The use of diode D1 across the relay coil (K1:COIL_1 and K1:COIL_2) is good practice as it provides a path for the current when the relay turns off, protecting other components from voltage spikes. However, ensure the diode's orientation is correct. Current configuration is correct as per the net connections where D1:A is connected to K1:COIL_2 and D1:K to 5VDC, assuming 5VDC is the high side this will protect against back EMF properly.

Pull-down Resistor for Q2 Base: There is no pull-down resistor connected to the base of Q2 (2N3904, a NPN transistor). Without a pull-down resistor, the base might float, leading to unpredictable operations. Consider adding a resistor (10kΩ typical) from Q2:B to ground (GND) to ensure it remains off when not explicitly driven high.

LED Current Limiting Resistor: The project includes an LED (LED1) with a specified forward voltage (1.7V) but lacks a current-limiting resistor specific to the LED circuit. The connection from 5VDC through LED1 to R1 (1kΩ) does appear to serve as the current-limiting resistor for the LED, which is a good configuration. Assuming a forward voltage of 1.7V and a supply of 5V, using R1 as the LED's current-limiting resistor results in a current of: $I = \frac{V_{supply} - V_{f}}{R} = \frac{5V - 1.7V}{1k\Omega} = 3.3mA$ This is within a safe operating range for most standard LEDs, so this setup should be fine.

Relay Drive Configuration: The relay (K1) appears to be driven by Q1 and the diode D1 is protecting against back EMF, which is a standard practice. Ensure that the transistor Q1 can handle the current required by the relay's coil. The current through the coil is defined by the voltage across it and its resistance. Without the relay coil's resistance specified, an assumption is made it’s suitable for direct operation at 5V.

Redundancy in Net Declarations: There are multiple declarations for the same net names (e.g., VCC, 5VDC, GND, COM, NO), which could be streamlined for simplicity. This redundancy may not cause issues in software but could be confusing for documentation or troubleshooting purposes.

Output Connections: The project makes use of NO and COM terminals of the relay but doesn't specify what the relay controls. This is fine if the relay controls external devices that are not part of this schematic. Just ensure the external connections are made correctly according to the relay's voltage and current capabilities.

Voltage Divider for Q1 Base Drive: There is a potential issue with the direct connection from VCC to R3 which then connects to Q1's (A) pin without any current-limiting feature or clear control logic besides R3. The setup might be intended for biasing Q1, but the direct connection to VCC might not provide a clear control mechanism unless VCC is being switched on and off for control, which isn't indicated.
