what this?

abelzhao

@copilot what this?

copilot

Based on the description provided in the `` tags, your project is centered around designing a circuit using the AMS1117-5.0S, which is a fixed 5V, low-dropout (LDO) linear voltage regulator. This component is commonly used to provide a stable 5V output from an input voltage ranging between 5V to 18V. It's specified to offer a noise performance of 60dB at 120Hz and to handle up to 1A of output current with a voltage drop of 1.3V at full load. The AMS1117-5.0S in your project is in an SOT-89 package and is manufactured by Youtai Semiconductor Co., Ltd.

Your project components list includes four designators: VO1 and VO2 as power output terminals, VI as the power input terminal, and GND, which is the ground terminal. These designators likely represent connections to the AMS1117-5.0S, but no electrical connections have been made yet in your schematic. Here's a broad outline of how you might want to connect these components to integrate the AMS1117-5.0S into your circuit:

Connect VI (Power Input Terminal): This is where the unregulated input voltage (5V to 18V) should be connected. Assuming that VI is meant to represent the input voltage to the AMS1117-5.0S, it should be connected to the input pin of the AMS1117 (not listed by pin number here, but typically, this would be pin 1 for most LDO configurations).
Connect GND (Ground Terminal): This pin needs to be connected to the ground (GND) of your circuit. It's crucial for reference and completing the circuit.
Connect VO1 and VO2 (Power Output Terminals): These represent the regulated 5V output from the AMS1117-5.0S. In most applications, you would have a single output, but your project lists two output terminals. If both VO1 and VO2 are intended to distribute the 5V output to different parts of your circuit, they should be connected together and then to the output pin of the AMS1117-5.0S (typically pin 2 in many LDO configurations) along with any required output filtering or decoupling capacitors to maintain stability and reduce noise.

Given the generic description of terminals without explicit reference to the AMS1117-5.0S pin numbers or specific connection details, assumptions had to be made based on standard practices and the typical configuration of an LDO regulator. To proceed with the design in Flux, you'd typically start by placing the AMS1117-5.0S component on your schematic canvas, then route connections from the designated input, output, and ground pins to their respective terminals as outlined:

Connection Strategy:
- Connect VI:Pin to AMS1117-5.0S:IN (assuming VI corresponds to the regulator's input).
- Connect GND:Pin to AMS1117-5.0S:GND.
- Connect VO1:Pin and VO2:Pin to AMS1117-5.0S:OUT (assuming VO1 and VO2 distribute the regulated output).

Please verify your component datasheet for the AMS1117-5.0S to confirm the pin configuration and adjust the designator and pin assignments accordingly. If you have specific requirements or further questions about the circuit, feel free to ask!

Someone is typing...

explain this project.

sergiooch

@copilot como hacer un circuito de una casa

copilot

Para diseñar un circuito electrónico simple que emule la funcionalidad eléctrica básica de una casa en Flux, podríamos considerar algunos elementos esenciales como iluminación (LEDs), interruptores para controlar esos LEDs, y quizás un sistema de alimentación que simule la red eléctrica de una casa. Para mantener las cosas simples y enfocadas en un nivel básico, vamos a suponer que estaremos utilizando una fuente de alimentación de bajo voltaje, como una batería de 9V, para alimentar los LEDs que representan las luces de la casa.

Voy a guiarte a través de la creación de un circuito básico que incluye:

Fuente de Alimentación: Utilizaremos una batería de 9V como nuestra fuente de alimentación principal.
Interruptores: Para simular el encendido y apagado de luces en diferentes habitaciones, utilizaremos interruptores.
LEDs: Para representar las luces en la casa.
Resistencias: Para limitar la corriente a los LEDs y evitar que se quemen.

Para este esquema, necesitas:

Una batería de 9V como tu fuente de alimentación (V1). Conecta el polo positivo de la batería al primer terminal de cada interruptor (S1, S2, S3... para tantas "habitaciones" como quieras).
Interruptores (S1, S2, S3,...) para controlar las luces de cada "habitación".
- Conecta el segundo terminal de cada interruptor a un resistor (R1 para S1, R2 para S2, etc.). Los valores típicos de resistencia podrían estar entre $220\Omega$ y $470\Omega$, dependiendo de la especificación de tus LEDs.
Resistencias (R1, R2, R3,...) para limitar la corriente a los LEDs.
- Conecta el otro extremo de cada resistor al ánodo (+) de un LED correspondiente (LED1 conectado a R1, LED2 a R2, etc.).
LEDs (LED1, LED2, LED3,...) como luces de la casa.
- Conecta el cátodo (-) de cada LED al terminal negativo de la batería de 9V (o a una línea común de tierra si estás trabajando en un diseño más complejo).

Aquí te dejo la configuración básica de conexión:

Conecta V1:+ al S1:1, S2:1, S3:1, etc.
Conecta S1:2 a R1:1, S2:2 a R2:1, S3:2 a R3:1, etc.
Conecta R1:2 a LED1:+, R2:2 a LED2:+, R3:2 a LED3:+, etc.
Conecta LED1:-, LED2:-, LED3:-, etc., a V1:-.

Notas importantes:

Asegúrate de revisar las especificaciones de tus LEDs para seleccionar los valores adecuados de resistencias.
Este es un circuito básico para comprender cómo fluye la electricidad y cómo los interruptores controlan el flujo de corriente a través de los LEDs. Para una casa real, las cosas son mucho más complejas y requieren cumplimiento con normas eléctricas locales.

Si tienes detalles específicos o requisitos adicionales para tu proyecto, ¡házmelo saber para poder ayudarte mejor!

sergiooch

@copilot realizame un circuito de un componente

copilot

Para diseñar un circuito utilizando el AMS1117-5.0, un regulador de voltaje lineal LDO (Low-Dropout) que provee un voltaje fijo de 5V, necesitamos conectar algunos componentes adicionales para asegurar su correcto funcionamiento. No se especificaron componentes externos como condensadores de entrada y salida que son típicamente recomendados para la estabilidad del AMS1117-5.0, así que asumiré valores típicos para estos. Aquí te dejo una descripción del circuito:

Lista de Materiales

AMS1117-5.0S (U1): Regulador de Voltaje Lineal LDO de 5V.
C1: Condensador cerámico de 10uF, 25V (entrada).
C2: Condensador cerámico de 10uF, 6.3V (salida).
VI (Fuente de Alimentación): Voltaje de entrada 6.5V a 18V.
VO1 y VO2: Terminales para el voltaje de salida regulado de 5V.
GND: Tierra común del circuito.

Conexiones

Conexión de Entrada (VI):
- Conectar VI:P a U1:3 (Vin).
- Conectar C1:1 a VI:P y C1:2 a GND:P.
Conexión a Tierra (GND):
- Conectar U1:1 (GND) a GND:P.
Conexión de Salida (VO1 y VO2):
- Conectar U1:2 (Vout) a C2:1, VO1:P, y VO2:P.
- Conectar C2:$2$ a GND:P.

Descripción de las Conexiones

C1 es el condensador de entrada recomendado para estabilizar el voltaje de entrada al AMS1117. Se coloca lo más cerca posible al pin de entrada del AMS1117 y a tierra (GND).
C2 es el condensador de salida y es crucial para la estabilidad del regulador de voltaje LDO. Al igual que C1, debe colocarse lo más cerca posible del pin de salida del AMS1117 y a tierra (GND).
VO1 y VO2 son puntos en el circuito donde el usuario puede extraer los 5V regulados proporcionados por el AMS1117.

Asegúrate de revisar la hoja de datos del AMS1117-5.0S para cualquier recomendación adicional específica sobre la disposición de los componentes y sobre los valores de los condensadores de entrada y salida. Este esquema es un punto de partida para un circuito simple que usa un AMS1117-5.0S. Dependiendo de tu aplicación específica, puede que necesites hacer ajustes adicionales.

sergiooch

@copilot explain this project.

copilot

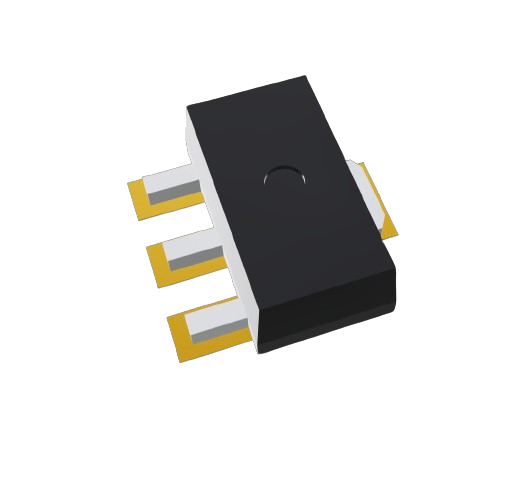

This project appears to center around the usage of the AMS1117-5.0S, a linear voltage regulator from Youtai Semiconductor Co., Ltd. (UMW). The AMS1117-5.0S is specified to output a fixed 5V voltage, suitable for various electronic applications that require a stable power supply. Based on the description, this regulator can handle input voltages from 5V to 18V, making it versatile for different input conditions. It also features a low dropout (LDO) characteristic, allowing it to maintain output regulation with a minimal difference between the input and output voltages.

Here are the key components and properties described in your project:

AMS1117-5.0S Specifications:
- Type: Linear Voltage Regulator
- Output: Fixed 5V
- Noise Reduction: 60dB at 120Hz
- Dropout Voltage: 1.3V at 1A load
- Package: SOT-89
Project Components:
- VO1 and VO2 are designated as power output terminals, with pin numbers 2 and 4, respectively. These might be intended for connecting the regulated output voltage to other parts of the circuit.
- VI is marked as a power input terminal, with pin number 3. This is where the unregulated input voltage should be connected.
- GND is identified with pin number 1 and is marked as a power input, likely serving as the ground reference for the circuit.

No electrical connections have been established in the project yet. Based on the component pins described, connections essential for the operation of the AMS1117-5.0S would typically involve connecting the unregulated input voltage to VI, grounding GND, and drawing the regulated output from VO1 or VO2. Since there are two outputs mentioned (which is unusual for a simple regulator scenario), it might be a design choice for distributing the regulated voltage to different parts of the circuit or for redundancy.

Additional details may be required to fully understand the intended circuit configuration, especially concerning VO1 and VO2's roles, and how the regulated output is utilized within the broader project.
