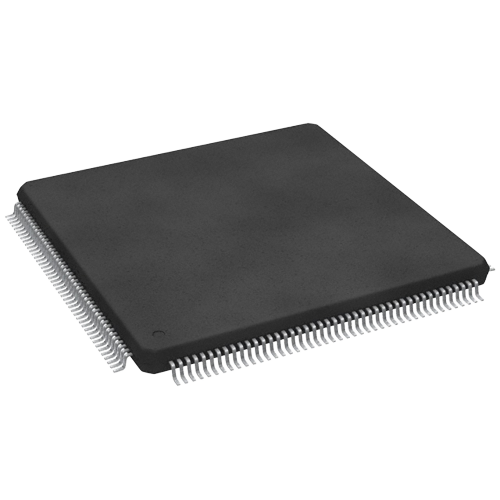

Schematic Symbol for STM32F407IGT6: ARM® Cortex®-M4 STM32F4...

Chat

Welcome to Flux

Treat Flux like your intern. Tell it what you'd like to build and it'll get to work. You can also ask it questions, brainstorm ideas, and teach it your preferences. Learn More

Explain project

Write a project description

Find schematic issues

Create a test plan

Operating conditions

Verify Part Details

Part Specifications

Recommend similar parts

Ready.

are there any issues in this project?

krapanj

@copilot are there any issues in this project?

copilot

Here's a quick evaluation of the project:

Unconnected Pins: None of the pins in the project are currently connected. This includes all power, ground, and I/O pins, which need proper connections for your design to function.
Power and Ground Connections:
- Ensure that all the necessary power pins, including $VDD$ , $VDD_8$ , etc., and ground pins such as $VSS_8$ , $VSS_10$ , etc., are connected to appropriate power and ground nets.
Decoupling Capacitors: It's generally recommended to have decoupling capacitors near the power pins to stabilize the power supply. Have you planned to include those?
Reset and Boot Pin Configuration:
- Make sure the $NRST$ pin and $BOOT0$ pin are correctly configured. Typically, the NRST pin should be connected to a pull-up resistor, and the BOOT0 pin to ground unless a bootloader is needed.
Oscillator Connections: If you're planning to use an external oscillator, ensure the relevant pins are connected appropriately.
No Pin Functions Defined: At this stage, none of the I/O pins have designated functions or connections. You'll need to specify what peripherals and interfaces are being used (e.g., GPIO, UART, I2C, SPI).

If you share more about the intended application or specific functionalities, I can provide more tailored advice on connecting components or configuring peripherals!
