Interpreting PWM controller needs.

Recommending stepper motor drivers.

Requesting stepper motor specifications.

To drive a stepper motor you’ll want a dedicated stepper‐driver IC (an LM555 PWM alone won’t give you full‐step or microstepping control, current limiting, etc.). Based on your motor’s current rating, common options are:
Key supporting components (added to the motor supply rail, VMOT):
  • A 100–470 µF, 50 V electrolytic capacitor near VMOT to absorb switching spikes
  • High‐speed flyback diodes (often built into the driver IC, but check the datasheet)
And decide on microstepping resolution (e.g. 1/8 or 1/16 steps) for smoother motion.
What is your stepper motor’s supply voltage and coil current rating? And do you need microstepping? Once we know that, I can help select the right driver and decoupling parts.
Provide motor specs
Provide motor specs full-step
Ask microstepping support
Find driver in library
Recommend decoupling cap
147 days

Ready.

Sign up to send

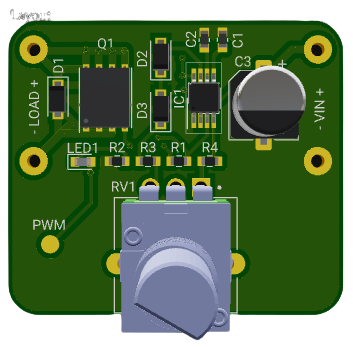

For IC7, find an alternative part that has through hole package
anchal23

anchal23

@copilot For IC7, find an alternative part that has through hole package
1y

copilot

For finding an alternative to IC7, which is specified as an LM555CM (a surface-mount package version of the LM555 timer IC), we would ideally look for a through-hole package variant of the LM555 timer. The LM555 timer is widely used in various electronic circuits for generating precise timing sequences, and it comes in different package types, including through-hole versions.
An alternative through-hole version of the LM555 would be:
  • NE555P: This is a through-hole version of the LM555 timer IC. It is packaged in an 8-pin PDIP (Plastic Dual-In-line Package), which is suitable for breadboard or through-hole PCB mounting.
Here are the details for this alternative:
  • Part Number: NE555P
  • Package Type: PDIP (Plastic Dual-In-line Package)
  • Manufacturer: Many manufacturers produce the NE555P as it is a generic part. Texas Instruments is one of the well-known manufacturers with a datasheet readily available.
  • Description: This is a standard single bipolar timer IC suitable for timing from microseconds to hours, capable of operating in astable or monostable modes.
Please note: When replacing a surface-mount device (SMD) like the LM555CM with a through-hole part like the NE555P in a design, make sure that your PCB layout accommodates the through-hole pinning. The functional parameters of LM555CM and NE555P are very similar, and for most applications, they are interchangeable, but always verify the specific requirements of your application, including operating voltage, timing range, and output current capabilities.
1y
Someone is typing...
place appropriate filter capacitors on the Vcc line for IC7
anchal23

anchal23

@copilot place appropriate filter capacitors on the Vcc line for IC7
1y

copilot

To place appropriate filter capacitors on the Vcc line for IC7 (LM555CM), it's common to use a combination of bulk and bypass capacitors to ensure smooth power supply and reduce noise. The LM555 timer IC is generally quite tolerant, but proper decoupling helps in achieving stable operation, especially in PWM applications where switching noise can be a concern.
Here's a typical approach, making assumptions based on common practices:
  1. Bulk Capacitor (Electrolytic or Tantalum) - A larger value capacitor to provide bulk energy storage. A value of $10\mu F$ to $100\mu F$ is typical.
  2. Bypass Capacitor (Ceramic) - A smaller, high-frequency capacitor placed as close as possible to the IC’s Vcc and GND pins to filter out high-frequency noise. Values in the range of $0.1\mu F$ to $1\mu F$ are common.
Based on this, let's assume you're using a $100\mu F$ electrolytic capacitor for bulk storage and a $0.1\mu F$ ceramic capacitor for high-frequency decoupling. The connection would look something like this:
  • Bulk Capacitor: Connect a $100\mu F$ capacitor's positive side to IC7:8 (VCC) and the negative side to IC7:1 (GND).
  • Bypass Capacitor: Connect a $0.1\mu F$ ceramic capacitor between IC7:8 (VCC) and IC7:1 (GND), placing this capacitor physically close to the pins of IC7.
In summary:
  • Connect Cxx:1 (positive side of the $100\mu F$ capacitor) to IC7:8 (VCC).
  • Connect Cxx:2 (negative side of the $100\mu F$ capacitor) to IC7:1 (GND).
  • Connect Cyy:1 (one terminal of the $0.1\mu F$ ceramic capacitor) to IC7:8 (VCC), as close to the pin as possible.
  • Connect Cyy:2 (the other terminal of the $0.1\mu F$ ceramic capacitor) to IC7:1 (GND), as close to the pin as possible.
Please replace Cxx and Cyy with the actual designators for the capacitors you'll be adding to your schematic in Flux. Adjust the values if needed based on the specific requirements of your application or if my assumptions do not match your project's needs.
1y
anchal23

anchal23

@copilot can you place 0.1uF decoupling capacitor to IC7?
1y

copilot

To place a $0.1\mu F$ decoupling capacitor close to IC7 (LM555CM) in your circuit for noise suppression and stable operation, follow this connection scheme:
  • Decoupling Capacitor for IC7: Assume we designate this capacitor as Cxx.
Connect the connections like so:
  • Connect Cxx:1 to IC7:8 (VCC).
  • Connect Cxx:2 to IC7:1 (GND).
Ensure that Cxx, the $0.1\mu F$ ceramic capacitor, is physically placed as close as possible to the IC7's power (VCC) and ground (GND) pins to effectively minimize noise.
Please assign the next available number to Cxx based on your current component numbering in the schematic to maintain consistency.
1y
anchal23

anchal23

Take action
1y

copilot

I can guide you through the steps you need to take to implement the action:
  1. Open your Flux project: Navigate to your project within the Flux web application where you’re working on the schematic that includes IC7 (the LM555CM or similar IC).
  2. Add a Capacitor to Your Schematic:
    • Use the component library to find a 0.1μF0.1\mu F ceramic capacitor. This component might be listed under passive components or specifically within capacitors.
    • Drag the capacitor from the library and drop it onto your schematic.
  3. Position the Capacitor:
    • Place the capacitor (Cxx) as close as possible to the pins of IC7. Specifically, it should be near the VCC (pin 8) and GND (pin 1) for IC7. This minimizes the loop area and helps with noise suppression effectively.
  4. Make the Connections:
    • Using the wiring tool, draw connections from one terminal of the capacitor (Cxx:1) to IC7:8 (VCC).
    • Draw another connection from the other terminal of the capacitor (Cxx:2) to IC7:1 (GND).
  5. Review and Save Your Work:
    • After placing the decoupling capacitor and making the necessary connections, review your schematic to ensure everything is correctly connected and positioned.
    • Save your changes to preserve the modifications to your project.
Remember, the placement and wiring of components in your schematic within the Flux environment are critical to achieving a well-functioning circuit design. Double-check the polarity of the capacitor if applicable (although a 0.1μF0.1\mu F ceramic capacitor typically doesn't have polarity) and ensure there are no routing errors or conflicts.
If you need further assistance or have specific questions as you work on your design, feel free to ask!
1y
Someone is typing...
4
Can we make more copies of this module
anchal23

anchal23

yes sure
1y
anchalsinghal

anchalsinghal

Can we make more copies of this module
1y
Someone is typing...
2
