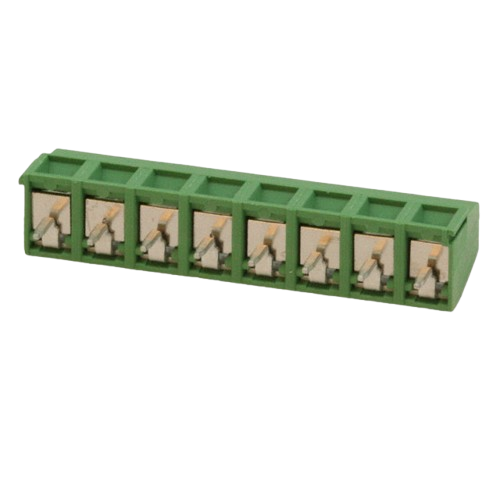

    8 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
    Body Features: Primary Product Color Green | Product Orientation Vertical | Configuration Features: Stacking Configuration Side Stackable | Number of Rows 1 | Number of Positions 8 | Wire Entry Location Side | Wire Entry Angle 90 | Stacked Levels Without | Contact Features: Contact Current Rating (Max) 13.5 AMP | Contact Base Material Brass | Contact Mating Area Plating Material Tin | Dimensions: Wire Size .05 1.3 MMSQ | Wire Size 30 16 AWG | Electrical Characteristics: Operating Voltage 300 VAC |
    #commonpartslibrary #connector #terminalblock

    Properties

    282837-8

    TE Connectivity

    Connector

    te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=1-1773458-1_EURO_STYLE_QRG&DocType=Data%20Sheet&DocLang=English&PartCntxt=282837-8&DocFormat=pdf

    J

    Base

    Green
