RX/DT/AN11/RB5
TX/CK/RB7
~T1G~/OSC2/CLKOUT/AN3/RA4
RC2/AN6/C12IN2-/P1D
C1OUT/T0CKI/INT/AN2/RA2
RC6/AN8/~SS~
VDD
SDI/SDA/AN10/RB4
Vpp/~MCLR~/RA3
SCK/SCL/RB6
C12IN0-/ICSPCLK/Vref/AN1/RA1
T1CKI/OSC1/CLKIN/RA5
RC0/AN4/C2IN+
RC3/AN7/C12IN3-/P1C
RC4/C2OUT/P1B
RC1/AN5/C12IN1-
RC7/AN9/SDO
C1IN+/ICSPDAT/ULPWU/AN0/RA0
RC5/CCP1/P1A
VSS

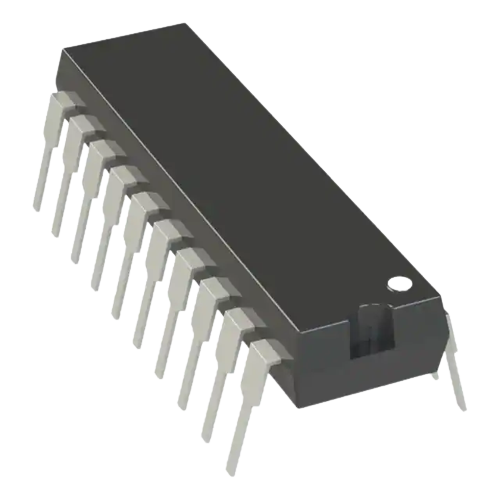

Part preview

PIC16F690-I/P

PIC16F690-I/P thumbnail
