Component & Connector Mapping

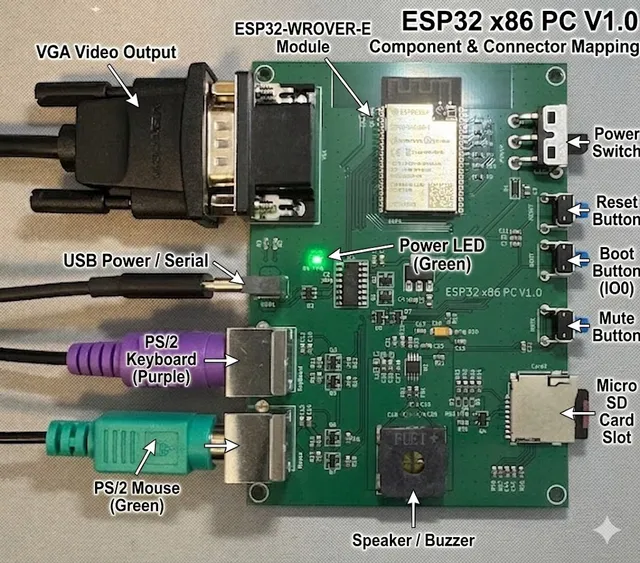

The image below annotates the user-facing connectors, controls, speaker, SD card connector, power LED, and ESP32 module on the current PCB photo.
Labeled components
Table
| Label | Schematic reference / part | Description |
|---|---|---|
| VGA | VGA / D-DMRH15PF-E006 | 15-pin VGA output connector for analog RGB plus sync signals. |
| USB-C | USB1 / TYPEC-305-ACP16 | USB-C connector used for 5 V input and USB data to the USB-UART bridge. |
| PS/2 Keyboard | KeyBoard / HYC03-MDC603-128B | Mini-DIN PS/2 keyboard connector with data and clock interface circuitry. |
| PS/2 Mouse | Mouse / HYC03-MDC603-128B | Mini-DIN PS/2 mouse connector with data and clock interface circuitry. |
| Power Switch | POWER / SS-12D11G5R | Slide switch in the USB/VBUS to board power path. |
| RESET | RESET / 1825027-8 | Momentary button connected to the ESP32 enable/reset circuit. |
| BOOT | BOOT / 1825027-8 | Momentary button used for ESP32 bootloader entry via GPIO0 boot circuitry. |
| MUTE | MUTE / 1825027-8 | Audio mute control for the onboard amplifier path. |
| microSD | Card2 / TF PUSH | microSD card socket for removable storage. |
| Speaker | SPK1 / FS-1540 | Onboard speaker driven by the audio amplifier. |
| PWR LED | PWR / LED-0805 | Power indicator LED for the 3.3 V rail. |
| ESP32 | ESP1 / ESP32-WROVER-E | Main ESP32 module providing compute, VGA generation, SD, PS/2, UART, and audio control signals. |
