Set the switching frequency on TPS552892RYQR by the FSW pin resistor:

Datasheet (Pin Functions, Table 5-1): the FSW pin switching frequency is programmed by a resistor between FSW and AGND.
Datasheet frequency equation (Eq. 3 / Section “Switching Frequency”):
$f_{SW} = \frac{1000}{0.05 \times R_{FSW} + 35}\ \text{(MHz)}$

For ~500 kHz target

Using the datasheet equation, RFSW ≈ 39.3 kΩ for fSW = 0.5 MHz (500 kHz).

Where to change it in the PSpice project

In the TI PSpice reference schematic, find the resistor that:

connects to the net/pin labeled FSW (pin 6), and
goes to AGND (often labeled something like R_FSW / RFSW / Rset)

Set that resistor to 39.2 kΩ (E96) or 39.0 kΩ (E24), depending on what you have available.

If you share a screenshot of the PSpice schematic around the FSW pin, I can point to the exact refdes to edit.

58 days

vtitanhardware


58 days

flux

0:25

Analy.

Calculating.

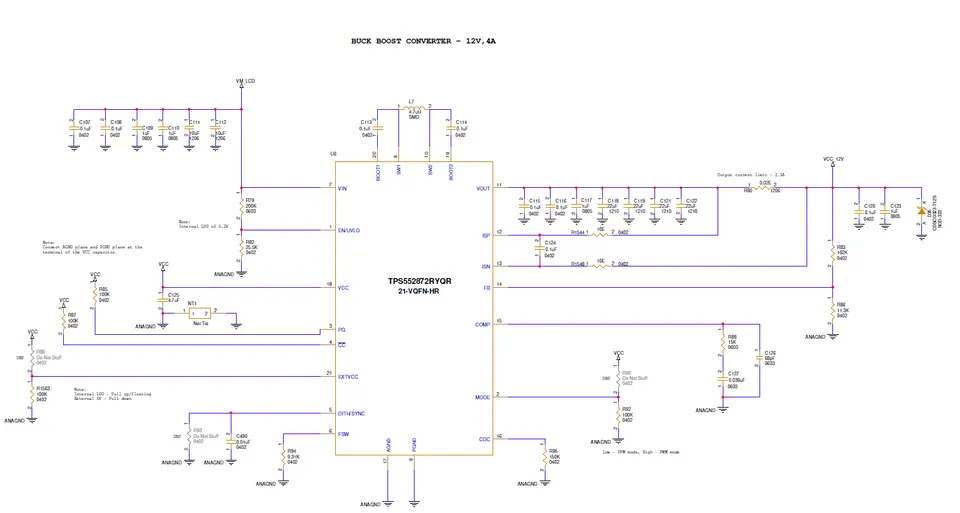

In the schematic you shared, FSW is set by the resistor from the FSW pin down to AGND/ANAGND.

It’s the part labeled R164 (shown as 49.9 kΩ, 0402) connected directly to the FSW net (bottom-left of the IC) and to ANAGND/AGND.

To target ~500 kHz, change that resistor to 39.3 kΩ (E96; 39.2 kΩ is also a common pick).

So in your PSpice project: edit R164 value from 49.9 kΩ -> 39.3 kΩ.

Pull R164 to 400kHz

Check SW1/SW2 placement

Review decoupling issues

Verify PG/EN nets

Find 39.2k 0402
