Pin Function Grouping Assistant


I found the official Nordic CSP47/CAAA pin table via Nordic docs; the embedded datasheet file itself only exposed a web-wrapper, so I’m using the official online table plus the existing pin names/numbers.
Grouped all 47 NRF54L15-CAAA-R7 pins by primary function and verified every pin has exactly one Pin Group / Section assignment with no duplicate physical pin numbers.
Open items:
  • The embedded datasheet file only exposed a Nordic web-wrapper, so I used Nordic’s official online CSP47/CAAA pin table plus the existing pin names/numbers.
Suggested next steps:
  1. Re-layout the symbol visually by these functional groups.
  2. Add pin descriptions from the datasheet.
  3. Run a symbol/property consistency review.
Make the functional group more general.
I’ll simplify the existing pin groups into broader categories while keeping each pin assigned to only one group.
Updated the pin grouping to broader functional categories: Power, Ground, GPIO, Analog, CLK, Debug, Reset, and RF. Verified all 47 pins still have one functional group assignment and no duplicate physical pin grouping.
Re-layout symbol
Add pin descriptions
Run consistency review
Use standard labels
Check pin numbers

Name
Pin #
Type
Section
Pin Group
Orientation
Order
Sub-symbol
XC1
A1
Passive
Clock
CLK
Left
6
XC2
A2
Passive
Clock
CLK
Left
6
P1.12/ASI_[3]_/RADIO_[3]/AIN5
A3
Bi-Directional
Analog
Analog
Right
7
DECA
A4
Power In
Power
Power
Top
1
DECD
A5
Power In
Power
Power
Top
1
VSS_1
A6
Ground
Ground
Ground
Bottom
15
DCC
A7
Power Out
Power
Power
Top
1
DECRF
B1
Power In
Power
Power
Top
1
P1.09/ASO[2]/RADIO_[0]
B3
Bi-Directional
Analog
Analog
Right
7
P1.13/RADIO_[4]/AIN6
B4
Bi-Directional
Analog
Analog
Right
7
P1.14_/RADIO_[5]/AIN7
B5
Bi-Directional
Analog
Analog
Right
7
P1.15
B6
Bi-Directional
GPIO
GPIO
Right
5
VDD_1
B7
Power In
Power
Power
Top
1
VSS_PA
C2
Ground
Ground
Ground
Bottom
15
P1.10/ASI_[2]/RADIO_[1]
C3
Bi-Directional
Analog
Analog
Right
7
P1.11/ASO_[3]/RADIO_[2]/AIN4
C4
Bi-Directional
Analog
Analog
Right
7
P1.00/XL1
C5
Bi-Directional
Clock
CLK
Left
6
P1.01/XL2
C6
Bi-Directional
Clock
CLK
Left
6
P1.02/NFC1
C7
Bi-Directional
GPIO
GPIO
Right
5
ANT
D1
Passive
RF
RF
Right
2
NRESET
D2
Input
Reset
Reset
Left
3
P0.04/GRTCLFCLKOUT
D3
Bi-Directional
GPIO
GPIO
Right
5
P2.08/TRACEDATA_[1]
D4
Output
Debug
Debug
Left
9

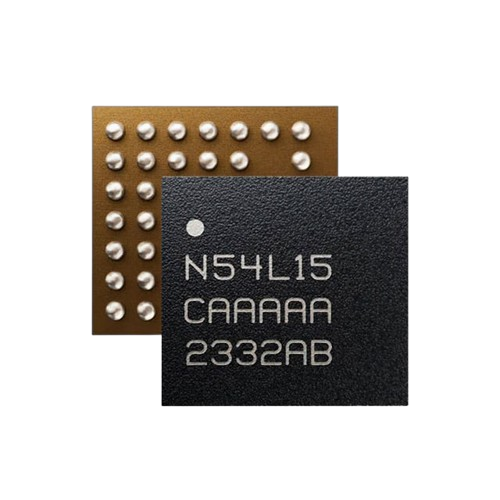

NRF54L15-CAAA-R7
