Step 1-2 result

The part already has an official datasheet URL set, so no property update was needed for 5-534237-6.

Available part information review

Field	Result
MPN	5-534237-6
Manufacturer	TE Connectivity
Project description	Headers & Wire Housings REC 1X08P VRT T/H

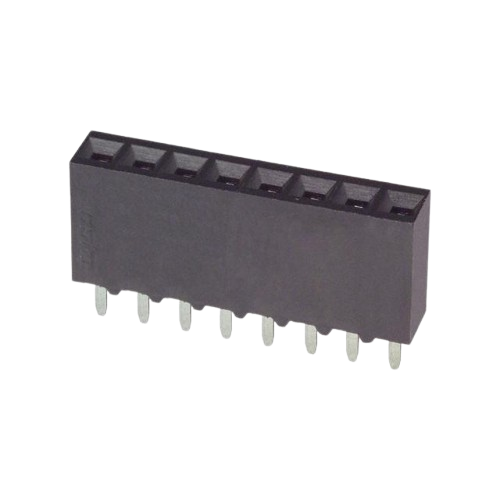

Official description	PCB Mount Receptacle, Vertical, Board-to-Board, 8 Position, 2.54 mm Centerline, Gold (Au), Through Hole - Solder, Signal, Black, AMPMODU IV/V
Series	AMPMODU IV/V
Mounting / termination	Board mount, through-hole solder
Positions / rows	8 positions, 1 row
Pitch	2.54 mm (0.100 in)
Housing	Polyester GF, black, UL 94V-0
Contact material	Phosphor bronze
Contact finish	0.762 µm gold mating area, tin termination area
Electrical ratings found	2 A max per contact, 333 VAC operating voltage
Temperature range	-65 to 105 °C
Datasheet/customer drawing URL present	Yes

Step 3: scanned document set summary

The URL currently set is an official TE customer drawing, not a full semiconductor-style datasheet. It provides solid mechanical and ordering data. Electrical and environmental ratings were confirmed from the official TE product page for the same MPN.

Extracted metadata

Category	Extracted data
Part identity	5-534237-6, TE internal description 08 MODII VRT SR CE 100/115
Product type	PCB mount receptacle, board-to-board, vertical, closed top entry
Positions	8
Rows	1
Pitch	2.54 mm (0.100 in)
Termination	Through Hole - Solder
Contact current rating	2 A max
Operating voltage	333 VAC
Operating temperature	-65 to 105 °C
Housing material	Glass-filled polyester
Housing color	Black
Flammability	UL 94V-0
Contact material	Phosphor bronze
Mating area plating	Gold (Au), 0.762 µm (30 µin)
PCB tail plating	Tin, 150 µin
Compliance note	RoHS compliant
Applicable docs referenced	Product spec 108-25022, application spec 114-25018

Absolute maximum ratings

Item	Result
Absolute maximum ratings table	Not present in the TE customer drawing
Practical consequence	This document is primarily mechanical / product-definition data, not a full abs-max table document

Recommended operating conditions

Item	Result
Operating temperature range	-65 to 105 °C
Current rating	2 A max per contact
Voltage rating	333 VAC
Recommended PCB pitch	2.54 mm
Recommended PCB hole diameter	1.02 mm
Wire size / insulation diameter	Not found in the customer drawing for this exact vertical PCB-mount receptacle page set

Pin descriptions

Pin info type	Result
Pin count in project	8
Numbering present on housing	Yes
Functional per-pin descriptions	Not provided
Available pin definition from official docs	Positions are numbered cavities 1 through 8; no distinct electrical function per pin because this is a passive receptacle

Package / mechanical dimensions

Dimension	Result
Overall length	20.32 mm (0.800 in)
Pitch span B	17.78 mm (0.700 in)
Body width callout found from drawing/footprint correlation	About 3.56 mm (0.140 in)
Above-board height / body envelope evidence	Customer-drawing extraction was inconsistent, but the footprint asset name encodes 20.32 x 3.56 x 8.64 mm, which aligns with the library footprint body model naming
Recommended hole diameter	1.02 mm
Board pitch	2.54 mm

Special features / notes

Feature	Result
Connector family	AMPMODU IV/V
Entry style	Closed, top entry
Mounting style	Vertical
Position marking	Cavity numbers marked on housing
Notes from drawing	Non-cumulative tolerances, cavity-centerline note, molded logo/date-code notes

Step 4: symbol and footprint cross-check

Cross-check results

Check	Project	Official data	Status	Risk
Pin count	8	8	Pass	Low
Pitch	Footprint asset name indicates 2.54 mm	2.54 mm	Pass	Low
Single-row format	Footprint asset name indicates 1x8	1 row, 8 pos	Pass	Low
Pad numbering	Pads 1-8	Positions 1-8	Pass	Low
Pin 1 identification	Pad 1 is rectangular	Standard orientation cue present	Pass	Low
Drill size	0.95 mm	Recommended 1.02 mm hole	Pass, but tight	Medium
Drill tolerance margin	0.95 mm lies within 0.94 mm to 1.10 mm implied range	Near low limit	Caution	Medium
Footprint body length	Fab outline spans about 20.32 mm	20.32 mm	Pass	Low
Schematic pin typing	Pins are effectively unspecified terminals	Passive connector positions	Incomplete metadata	Low to Medium
Datasheet type	Customer drawing, not full parametric datasheet	Official but mechanically focused	Caution	Medium

Manufacturing / ordering / failure-risk findings

Finding	Why it matters
The footprint drill is tight at 0.95 mm versus the 1.02 mm recommended hole.	It is still inside the extracted tolerance window, but very close to the lower limit. This can reduce assembly margin if plating thickness, drill tolerance, or lead variation stack unfavorably.
The current document on the part is a customer drawing, not a full all-in-one datasheet.	Good enough for footprint/order identity, but weaker for complete library metadata coverage.
Symbol pin metadata is sparse.	The schematic side is usable, but undefined pin types can reduce ERC quality and part usability in larger designs.
I found no evidence of a pin-count or pitch mismatch.	That removes the biggest board-failure risk.
I found no obvious ordering mismatch between the part project and the official TE product page.	The project MPN, position count, family, and vertical through-hole style align.

Bottom line

Verdict	Summary
Overall	Mostly correct
Main concern	Footprint hole diameter is slightly undersized relative to the recommended 1.02 mm nominal hole
Severity	Medium caution, not an immediate hard fail
Best next fix	Increase drill to the TE-recommended value if you want more manufacturing margin, and enrich the part metadata with the official TE product-page parameters / linked application spec references.
