Files

Pins

Symbol

Layout

3D View

Name
Pin #
Type
Current
Max Current
Part Type
Terminal Order
Terminal Type
RO
1
Output
0.06A
0.06A
Terminal
output
~RE~
2
Input
0.06A
0.06A
Terminal
INPUT
DE
3
Input
0.06A
0.06A
Terminal
INPUT
DI
4
Input
0.06A
0.06A
Terminal
INPUT
GND
5
Power In
0.06A
0.06A
Terminal
powerIn
A
6
Bi-Directional
0.06A
0.06A
Terminal
bidi
B
7
Bi-Directional
0.06A
0.06A
Terminal
bidi
VCC
8
Power In
0.06A
0.06A
Terminal
powerIn

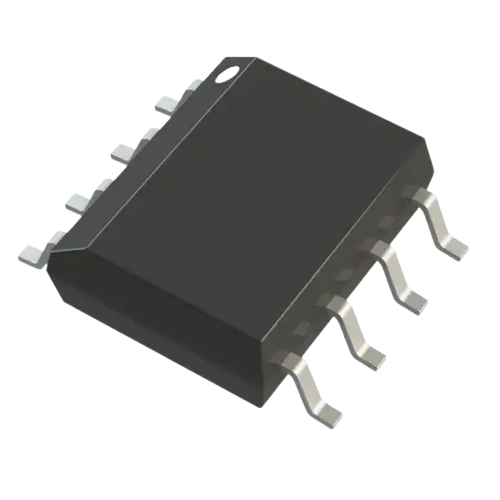

SP3481CN-L/TR
