Automotive TVS options ahead of the regulator

PartPackageManufacturerWhy it stands out
SMCJ24A-QSMCBournsBest balanced choice for the 12 V input ahead of IC1
SM8S24A-QDO-218BournsHeavier-duty option if you want more surge margin at the 39514-5004 entry
SMBJ28A-QSMBBournsSmaller package option if space matters more than surge robustness
SMBJ26A-QSMBBournsSimilar compact automotive option
SMCJ24AQ-13-FSMCDiodesReasonable alternative to the Bourns SMC part
Recommendation Placement
  • Put the TVS directly behind the 39514-5004, from +12 V to GND, before the input path feeding IC1.
If you want, I can next find a matching reverse-polarity protection part for the same input path.
Find reverse protection
Smaller TVS options
Check regulator input
Review input path
26 days
Sign up to send
explain this project.
arjunpc08

arjunpc08

@copilot explain this project.
1y

copilot

This project outlines a reference design for the ESP32-S3-MINI-1, aimed at IoT development. The ESP32-S3-MINI-1 is an MCU from Espressif Systems, designed for high-performance Wi-Fi and Bluetooth LE applications. The project includes various components and configurations that allow the ESP32-S3-MINI-1 to interface with other hardware, suited for developing a wide range of IoT devices. Below is an overview of the project's key components and their purposes:
Key Components:
  • ESP32-S3-MINI-1 (U1): The core microcontroller unit (MCU) designed for Internet of Things (IoT) applications, featuring Wi-Fi and Bluetooth connectivity. It has numerous GPIO pins for interfacing with other components.
  • RGB LED (LED1): An RGB LED for visual feedback, allowing different colors to be displayed by mixing red, green, and blue.
  • USB-C Connector (J1): Provides power to the board and a connection interface for programming the firmware onto the ESP32-S3-MINI-1.
  • Buttons (SW1, SW2): Typically used as reset (EN) and boot (BOOT) buttons. These are essential for programming the device and resetting it.
  • IO Connectors (J2, J3): These connectors provide access to the GPIO pins of the ESP32-S3-MINI-1, allowing various peripherals to be connected for development purposes.
  • Resistors (R1, R2, ...): These resistors are used for purposes such as setting up pull-up/pull-down for IOs, ensuring proper LED current, and interfacing with other components.
  • Capacitors (C1, C2, ...): Capacitors are used for decoupling and noise reduction on power lines, and sometimes for timing or filtering purposes.
  • Diode (D1): Likely used for protecting the circuit from incorrect power supply polarity.
  • Inductor (L1): Used in conjunction with IC1 (a power management IC) for creating a stable power supply for the device.
  • TPS62130RGTR (IC1): A power management integrated circuit (PMIC) from Texas Instruments, intended to provide a stable power supply to the MCU and other components.
Features:
  • IoT Capability: With built-in Wi-Fi and Bluetooth, the ESP32-S3-MINI-1 is ideal for IoT applications requiring remote connectivity.
  • Development-Friendly: The inclusion of USB-C for firmware updates, buttons for EN and BOOT, and IO connectors make this board suitable for development and testing of various applications.
  • Visual Feedback: The RGB LED offers a simple, visual means of feedback for software states or diagnostics.
  • Flexible Power Options: The design incorporates a power management IC (TPS62130RGTR) and various power nets (+5V, 3V3), suggesting flexibility in power sources and management for stable operation.
Licensing:
The project is licensed under the Creative Commons Attribution 4.0 International License, encouraging sharing and adaptation with proper attribution.
Conclusion:
This ESP32-S3-MINI-1 reference design is structured as a versatile platform for IoT development, with a focus on connectivity, ease of use, and flexibility for prototyping diverse applications.
1y
Someone is typing...
6
What are the pads SBU1 SBU2 for?
vasyl

vasyl

@copilot What are the pads SBU1 SBU2 for?
2y

copilot

The pads "SBU1" and "SBU2" are associated with the USB-C connector in your project (Designator: J1). These pads represent the Sideband Use (SBU) lines in the USB Type-C interface.
SBU lines are additional data lines that can be optionally used for alternate modes in USB Type-C specifications. Essentially, they allow the USB-C connector to support a variety of protocols beyond just USB. Common alternate modes include DisplayPort, Thunderbolt, and MHL, which means a USB-C port can output video and other types of data if the connected device supports it.
Bear in mind that you need to follow specific protocols for using these lines depending upon the intended functionality.
Source(s):
https://docs.flux.ai/reference/pads https://docs.flux.ai/reference/impedance-control
2y
Someone is typing...
4
I just noticed R2 and R3 do not have resistances set. Given this circuit design,...
twagnah

twagnah

@copilot I just noticed R2 and R3 do not have resistances set. Given this circuit design, and the need for a voltage output of 3.3v, what should they be set to?
1y

copilot

Given that the circuit uses the TPS62130RGTR, which is a step-down (buck) converter, the resistors R2 and R3 are likely configured to set the output voltage. This is done using a voltage divider connected to the feedback (FB) pin of the converter.
The standard output voltage equation for buck converters with resistive feedback is:
VOUT=VREF(1+R2R3)V_{OUT} = V_{REF} \left( 1 + \frac{R2}{R3} \right)
For the TPS62130, the reference voltage $ V_{REF} $ is typically 0.8V.
Given that $ V_{OUT} = 3.3V $, let's solve for $ R2 $ and $ R3 $:
3.3V=0.8V(1+R2R3)3.3V = 0.8V \left( 1 + \frac{R2}{R3} \right)
Rearranging the equation,
1+R2R3=3.3V0.8V1 + \frac{R2}{R3} = \frac{3.3V}{0.8V} R2R3=3.3V0.8V−1\frac{R2}{R3} = \frac{3.3V}{0.8V} - 1 R2R3=3.125−1\frac{R2}{R3} = 3.125 - 1 R2R3=2.125\frac{R2}{R3} = 2.125
Any ratio that satisfies this condition will work, but typically E96 series resistors (1% tolerance) are used to get precise values. You can choose standard resistors such as:
  • $ R2 = 21.25\text{k}\Omega $
  • $ R3 = 10\text{k}\Omega $
Let's use commonly available values close to these standard resistor values:
  • $ R2 = 21.5\text{k}\Omega $
  • $ R3 = 10\text{k}\Omega $
These values should provide an output voltage very close to 3.3V.
To update the resistors in your project:
  • Set R2 to 21.5kΩ
  • Set R3 to 10kΩ
1y
Someone is typing...
8
explain this project.
arjunpc08

arjunpc08

@copilot explain this project.
1y

copilot

This project is a reference design for creating IoT (Internet of Things) devices based on the ESP32-S3-MINI-1 module from Espressif Systems. The ESP32-S3-MINI-1 is a powerful, general-purpose SoC (System on Chip) with integrated Wi-Fi and Bluetooth capabilities, making it ideal for a wide range of IoT applications. Here's a breakdown of the project's main features and components:
Main Features:
  • ESP32-S3-MINI-1 Module: The core of the project, providing the processing power and connectivity (Wi-Fi and Bluetooth) required for IoT applications.
  • RGB LEDs (Designator LED1): For visual feedback, diagnostics, or user interaction.
  • USB C (Designator J1): Facilitates firmware updates and power supply. The USB interface could also be used for communication purposes.
  • EN (Enable) and BOOT Buttons: Allow manual control over the module's operation modes, such as resetting or entering bootloading mode for firmware updates.
  • IO Connectors: Offer access to the ESP32-S3-MINI-1's GPIO pins for expanded functionalities.
Key Components:
  • U1 (ESP32-S3-MINI-1U-N8): The main microcontroller unit featuring Wi-Fi and Bluetooth.
  • C1, C2, C3, etc.: Capacitors used across the design for various purposes such as decoupling, filtering, and stability.
  • R1, R2, R3, etc.: Resistors serve numerous roles such as pull-ups, pull-downs, current limiting for LEDs, and voltage division.
  • J1 (TYPE-C-31-M-12): A USB Type-C connector for power and data.
  • J2, J3: Connectors likely used for IO expansion or other peripheral connections.
  • D1 (MBR0520LT1G): A Schottky diode, probably used for reverse polarity protection or as part of a power management circuit.
  • LED1 (19-237/R6GHBHC-A04/2T): An RGB LED for user interface or status indication.
  • L1: An inductor, which is typically a part of power supply circuits, possibly for a buck converter in this design.
  • SW1, SW2 (PTS815 SJM 250 SMTR LFS): Push-button switches for EN and BOOT functionalities.
  • IC1 (TPS62130RGTR): A DC-DC converter from Texas Instruments, providing power management capability to efficiently supply the ESP32 or other components with the required voltages.
Connectivity and Interfacing:
  • The design incorporates various nets and connections between GPIO pins (IOX, where X is the pin number) of the ESP32-S3-MINI-1 and other components like LEDs, buttons, and USB interface. This establishes a foundation for developing functionalities such as user input, peripheral control, and data communication.
Application:
  • The schematic is a versatile platform intended to jumpstart the development of IoT devices, supporting applications ranging from smart home devices to industrial sensors and beyond, leveraging the ESP32's capabilities.
This project, shared under a Creative Commons Attribution 4.0 International License, encourages modification and distribution, making it a flexible starting point for hobbyists and professionals alike to develop their unique IoT solutions.
1y
11mo
Someone is typing...
5
I need convert 5-12V to 3.3V with 800mA out for powering ESP32-S3. Which IC you ...
vasyl

vasyl

@copilot I need convert 5-12V to 3.3V with 800mA out for powering ESP32-S3. Which IC you can recommend?
2y

copilot

For converting 5-12V to 3.3V output with 800mA, you will need a DC-DC Buck (step-down) converter. One common type of IC that you might want to consider is a switching regulator.
Here are a few options:
  1. MP1584EN from Monolithic Power Systems: It's a high-frequency, synchronous, rectified, step-down, switch-mode converter with built-in power MOSFETs. It offers a very compact solution to achieve a 3A continuous output current over a wide input supply range.
  2. LM2596 from Texas Instruments: It is a monolithic IC that provides all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. However, it's a larger component than some of the more modern alternatives.
  3. TPS62130 from Texas Instruments: This is a high efficiency and easy to use synchronous step down DC-DC converter capable of up to 3A of output current. The wide input voltage range of 3.0 to 17 V makes it suitable for a wide range of applications from industrial to automotive.
All these options support an output of 800mA and can handle input voltages up to 12V or higher. However, the circuit details like the output voltage setting, input and output capacitors, and inductor value would vary depending on the IC chosen.
Be sure to review the datasheet of the chosen IC for their specific design requirements, including the recommended circuit layout and the necessary external components.
Please note that it's really important to manage thermal issues in your design. Even though these ICs can handle your required output current, you have to make sure your PCB design can handle the thermal dissipation, especially if you're planning to draw 800mA constantly.
2y
Someone is typing...
3
  • Ground
    Ground
    A common return path for electric current. Commonly known as ground.
    jharwinbarrozo
    20.5M
  • Net Portal
    Net Portal
    Wirelessly connects nets on schematic. Used to organize schematics and separate functional blocks. To wirelessly connect net portals, give them same designator. #portal
    jharwinbarrozo
    43.0M
  • Power Net Portal
    Power Net Portal
    Wirelessly connects power nets on schematic. Identical to the net portal, but with a power symbol. Used to organize schematics and separate functional blocks. To wirelessly connect power net portals, give them the same designator. #portal #power
    jharwinbarrozo
    11.4M
  • Generic Resistor
    Generic Resistor
    A generic fixed resistor ideal for rapid circuit topology development. Its footprint automatically adapts based on the selected package case code—supporting 0402, 0603, 0805, 1203, and many other standard SMD packages, as well as axial horizontal and vertical configurations. Save precious design time by seamlessly add more information to this part (value, footprint, etc.) as it becomes available. Standard resistor values: 1.0 ohm, 10 ohm, 100 ohm, 1.0k ohm, 10k ohm, 100k ohm, 1.0M ohm 1.1 ohm, 11 ohm, 110 ohm, 1.1k ohm, 11k ohm, 110k ohm, 1.1M ohm 1.2 ohm, 12 ohm, 120 ohm, 1.2k ohm, 12k ohm, 120k ohm, 1.2M ohm 1.3 ohm, 13 ohm, 130 ohm, 1.3k ohm, 13k ohm, 130k ohm, 1.3M ohm 1.5 ohm, 15 ohm, 150 ohm, 1.5k ohm, 15k ohm, 150k ohm, 1.5M ohm 1.6 ohm, 16 ohm, 160 ohm, 1.6k ohm, 16k ohm, 160k ohm, 1.6M ohm 1.8 ohm, 18 ohm, 180 ohm, 1.8K ohm, 18k ohm, 180k ohm, 1.8M ohm 2.0 ohm, 20 ohm, 200 ohm, 2.0k ohm, 20k ohm, 200k ohm, 2.0M ohm 2.2 ohm, 22 ohm, 220 ohm, 2.2k ohm, 22k ohm, 220k ohm, 2.2M ohm 2.4 ohm, 24 ohm, 240 ohm, 2.4k ohm, 24k ohm, 240k ohm, 2.4M ohm 2.7 ohm, 27 ohm, 270 ohm, 2.7k ohm, 27k ohm, 270k ohm, 2.7M ohm 3.0 ohm, 30 ohm, 300 ohm, 3.0K ohm, 30K ohm, 300K ohm, 3.0M ohm 3.3 ohm, 33 ohm, 330 ohm, 3.3k ohm, 33k ohm, 330k ohm, 3.3M ohm 3.6 ohm, 36 ohm, 360 ohm, 3.6k ohm, 36k ohm, 360k ohm, 3.6M ohm 3.9 ohm, 39 ohm, 390 ohm, 3.9k ohm, 39k ohm, 390k ohm, 3.9M ohm 4.3 ohm, 43 ohm, 430 ohm, 4.3k ohm, 43K ohm, 430K ohm, 4.3M ohm 4.7 ohm, 47 ohm, 470 ohm, 4.7k ohm, 47k ohm, 470k ohm, 4.7M ohm 5.1 ohm, 51 ohm, 510 ohm, 5.1k ohm, 51k ohm, 510k ohm, 5.1M ohm 5.6 ohm, 56 ohm, 560 ohm, 5.6k ohm, 56k ohm, 560k ohm, 5.6M ohm 6.2 ohm, 62 ohm, 620 ohm, 6.2k ohm, 62K ohm, 620K ohm, 6.2M ohm 6.8 ohm, 68 ohm, 680 ohm, 6.8k ohm, 68k ohm, 680k ohm, 6.8M ohm 7.5 ohm, 75 ohm, 750 ohm, 7.5k ohm, 75k ohm, 750k ohm, 7.5M ohm 8.2 ohm, 82 ohm, 820 ohm, 8.2k ohm, 82k ohm, 820k ohm, 8.2M ohm 9.1 ohm, 91 ohm, 910 ohm, 9.1k ohm, 91k ohm, 910k ohm, 9.1M ohm #generics #CommonPartsLibrary
    jharwinbarrozo
    1.5M
  • Generic Capacitor
    Generic Capacitor
    A generic fixed capacitor ideal for rapid circuit topology development. You can choose between polarized and non-polarized types, its symbol and the footprint will automatically adapt based on your selection. Supported options include standard SMD sizes for ceramic capacitors (e.g., 0402, 0603, 0805), SMD sizes for aluminum electrolytic capacitors, and through-hole footprints for polarized capacitors. Save precious design time by seamlessly add more information to this part (value, footprint, etc.) as it becomes available. Standard capacitor values: 1.0pF, 10pF, 100pF, 1000pF, 0.01uF, 0.1uF, 1.0uF, 10uF, 100uF, 1000uF, 10000uF 1.1pF, 11pF, 110pF, 1100pF 1.2pF, 12pF, 120pF, 1200pF 1.3pF, 13pF, 130pF, 1300pF 1.5pF, 15pF, 150pF, 1500pF, 0.015uF, 0.15uF, 1.5uF, 15uF, 150uF, 1500uF 1.6pF, 16pF, 160pF, 1600pF 1.8pF, 18pF, 180pF, 1800pF 2.0pF, 20pF, 200pF, 2000pF 2.2pF, 22pF, 220pF, 2200pF, 0.022uF, 0.22uF, 2.2uF, 22uF, 220uF, 2200uF 2.4pF, 24pF, 240pF, 2400pF 2.7pF, 27pF, 270pF, 2700pF 3.0pF, 30pF, 300pF, 3000pF 3.3pF, 33pF, 330pF, 3300pF, 0.033uF, 0.33uF, 3.3uF, 33uF, 330uF, 3300uF 3.6pF, 36pF, 360pF, 3600pF 3.9pF, 39pF, 390pF, 3900pF 4.3pF, 43pF, 430pF, 4300pF 4.7pF, 47pF, 470pF, 4700pF, 0.047uF, 0.47uF, 4.7uF, 47uF, 470uF, 4700uF 5.1pF, 51pF, 510pF, 5100pF 5.6pF, 56pF, 560pF, 5600pF 6.2pF, 62pF, 620pF, 6200pF 6.8pF, 68pF, 680pF, 6800pF, 0.068uF, 0.68uF, 6.8uF, 68uF, 680uF, 6800uF 7.5pF, 75pF, 750pF, 7500pF 8.2pF, 82pF, 820pF, 8200pF 9.1pF, 91pF, 910pF, 9100pF #generics #CommonPartsLibrary
    jharwinbarrozo
    1.5M
  • Generic Inductor
    Generic Inductor
    A generic fixed inductor suitable for rapid circuit topology development. The footprint automatically adapts based on the selected package, supporting standard SMD sizes (e.g., 0402, 0603, 0805) as well as well-known inductor packages such as SDR1806, PA4320, SRN6028, and SRR1260. Standard inductor values: 1.0 nH, 10 nH, 100 nH, 1.0 µH, 10 µH, 100 µH, 1.0 mH 1.2 nH, 12 nH, 120 nH, 1.2 µH, 12 µH, 120 µH, 1.2 mH 1.5 nH, 15 nH, 150 nH, 1.5 µH, 15 µH, 150 µH, 1.5 mH 1.8 nH, 18 nH, 180 nH, 1.8 µH, 18 µH, 180 µH, 1.8 mH 2.2 nH, 22 nH, 220 nH, 2.2 µH, 22 µH, 220 µH, 2.2 mH 2.7 nH, 27 nH, 270 nH, 2.7 µH, 27 µH, 270 µH, 2.7 mH 3.3 nH, 33 nH, 330 nH, 3.3 µH, 33 µH, 330 µH, 3.3 mH 3.9 nH, 39 nH, 390 nH, 3.9 µH, 39 µH, 390 µH, 3.9 mH 4.7 nH, 47 nH, 470 nH, 4.7 µH, 47 µH, 470 µH, 4.7 mH 5.6 nH, 56 nH, 560 nH, 5.6 µH, 56 µH, 560 µH, 5.6 mH 6.8 nH, 68 nH, 680 nH, 6.8 µH, 68 µH, 680 µH, 6.8 mH 8.2 nH, 82 nH, 820 nH, 8.2 µH, 82 µH, 820 µH, 8.2 mH #generics #CommonPartsLibrary
    jharwinbarrozo
    15.7k
  • Terminal
    Terminal
    An electrical connector acting as reusable interface to a conductor and creating a point where external circuits can be connected.
    natarius
  • RMCF0805JT47K0
    RMCF0805JT47K0
    47 kOhms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200 Thick Film #forLedBlink
    jharwinbarrozo
    1.2M
  • 875105359001
    875105359001
    10uF Capacitor Aluminum Polymer 20% 16V SMD 5x5.3mm #forLedBlink #commonpartslibrary #capacitor #aluminumpolymer #radialcan
    jharwinbarrozo
    1.2M
  • CTL1206FYW1T
    CTL1206FYW1T
    Yellow 595nm LED Indication - Discrete 1.7V 1206 (3216 Metric) #forLedBlink
    jharwinbarrozo
    1.1M

ESP32-S3-MINI-1 Reference Design

ESP32-S3-MINI-1 Reference Design thumbnail

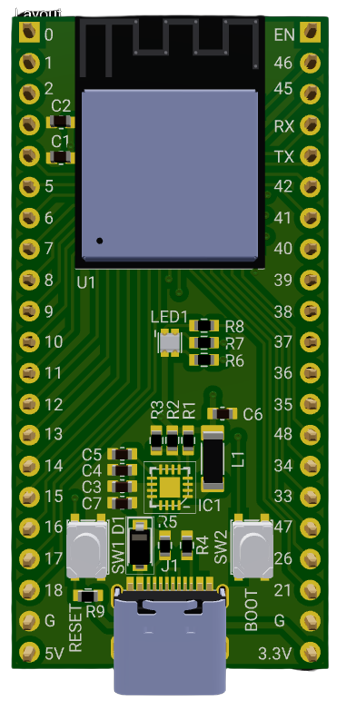

This project is a reference project for ESP32-S3-MINI-1 to develop your IoT ideas. The board has RGB LEDs, USB C for firmware, EN and BOOT buttons, and 2 IO connectors for development #IoT #WiFi #MCU #RF #ESP32 #project #referenceDesign #simple-embedded #espressif #template #reference-design

Properties

creativecommons.org/licenses/by/4.0/

Pricing & Availability

Distributor

Qty 1

Digi-Key

$4.26–$5.89

LCSC

$5.34

Mouser

$2.78
