GND
TNOW
VCC
UD+
UD-
RX
RTS
CTS
TX
V3
Pin #
Name
Type
Section
Pin Group
Orientation
Order
Sub-symbol
Current
1
UD+
Bi-Directional
0.02A
2
UD-
Bi-Directional
0.02A
3
GND
Input
0.02A
4
RTS
Output
0.02A
5
CTS
Input
0.02A
6
TNOW
Output
0.02A
7
VCC
Power In
0.02A
8
TX
Output
0.02A
9
RX
Input
0.02A
10
V3
Power In
0.02A

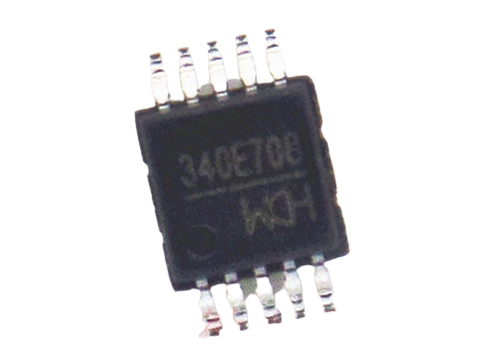

CH340E
