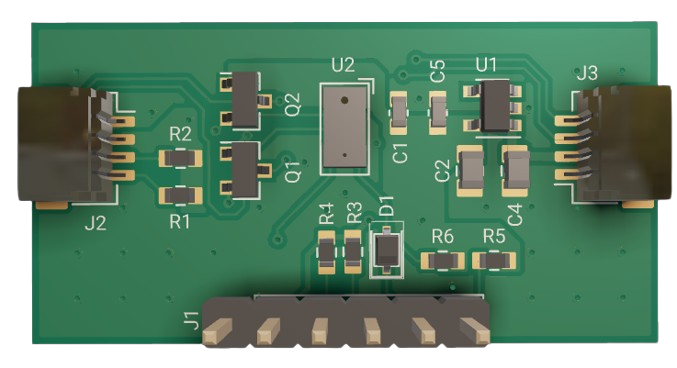

Schematic for VL53L4CD Reference Design: This project is a...

Chat

celinkaazurewilhufftarkin751375

kann man den Mosfet ersetzen durch eine GAN?

299 days

flux

is thinking...

299d 13:32:02

The response is taking longer than expected. Please try again with a more focused question.

299 days

Ready.

explain this project.

chesaro

@copilot explain this project.

copilot

This is a LIDAR sensor project based around the VL53L4CD module made by STMicroelectronics. The VL53L4CD is a time-of-flight ranging sensor, meaning it uses a laser to measure the distance to a target object. The project also incorporates a Texas Instruments LP5907MFX-2.8/NOPB regulator to manage the supply voltage.

Here's an overview of the circuit's functionality and key components involved:

The VL53L4CD (U2) sensor interfaces with other devices through a GPIO pin and I2C bus (SCL and SDA lines). Signals on these lines are level-shifted by a combination of BSS138 MOSFETs (designators Q1 and Q2) and resistors (R1 to R6).
The LP5907MFX-2.8/NOPB (U1) is a low-dropout (LDO) regulator that provides a stable 2.8V output, which is used to power the VL53L4CD module, among other things.
There are a number of capacitors (C1 to C5) intended for decoupling and noise filtering. The values and exact purposes vary, but the two nominal values seen here are 0.1uF and 10uF.
Two JST connectors (J1 and J2) are used for interfacing with other boards or devices.
A diode (D1) is used probably as protection for the VL53L4CD's XSHUT line.
There are a few net designators that represent different types of signals in the project including power supply (VCC, +2V8), ground (GND), I2C lines (SDA, SCL), GPIO lines (GPIO1), and a control line for the VL53L4CD (XSHUT).

Note: This is a high-level interpretation. Actual connections between components will depend on the circuit's specific needs and constraints.
