STC4054 Reference Design

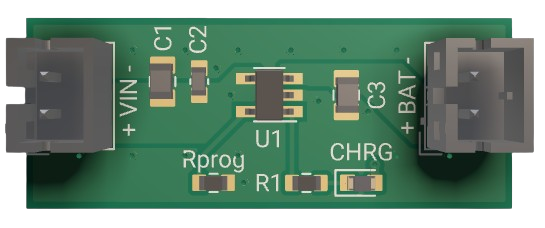

STC4054 Reference Design thumbnail

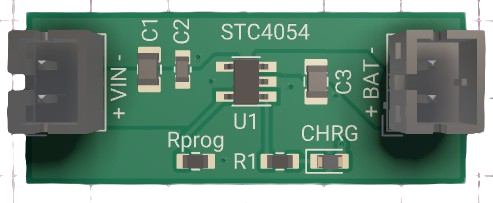

This project is a Lithium-ion battery charger circuit utilizing the STC4054 integrated circuit. It includes input and output connectors, a charging current programming resistor, decoupling capacitors, and a charge status indicator LED. The design can deliver up to 800mA charge current. #project #Template #charger #referenceDesign #batterycharger #template #bms #STC4054 #stm #reference-design #polygon
