list all U1 pins in a table format. For each pin provide its pin number, pin nam...
T

truc-2003

@copilot list all U1 pins in a table format. For each pin provide its pin number, pin name and function.
2y

copilot

Below is a table listing all the pins for the component designated U1 (LTC3547EDDB#TRPBF), along with their pin numbers, names, and functions based on the information provided:

Table

Pin NumberPin NameFunction
1VFB1Regulator 1 Output Feedback
2RUN1Regulator 1 Enable
3VINMain Power Supply
4SW1Regulator 1 Switch Node Connection to the Inductor
5GNDGround
6SW2Regulator 2 Switch Node Connection to the Inductor
7RUN2Regulator 2 Enable
8VFB2Regulator 2 Output Feedback
9EPADElectrically Connected to GND
The functions for each pin are summarized from the context around how these pins are intended to be used within the LTC3547 dual-output step-down voltage regulator integrated circuit.
2y
Someone is typing...

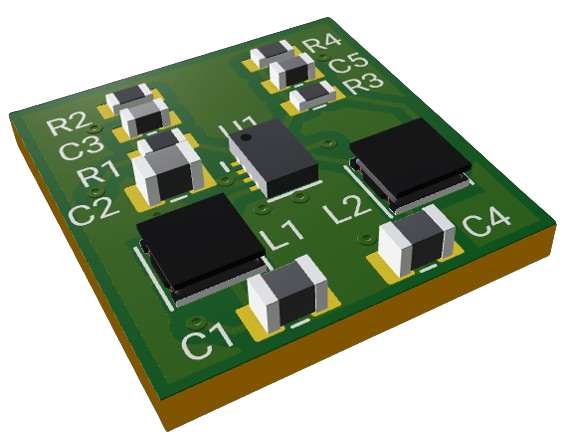

LTC3547 Module
