Schematic Simplification Request
3:07
Analyzing power regulation.
Proceeding with formatting and queries.
Using Knowledge Base Tool.
Searching for a component.
Searching.
Finished searching for a component.
Looking for "Peak current consumption Wi-Fi transmit (TX), receive (RX), and overall peaks" in esp32-wroom-32e_esp32-wroom-32ue_datasheet_en.pdf
Looking for "Maximum output current rating" in Diodes Incorporated
Looking for "Dropout voltage at 300 mA and 600 mA for 3.3V version" in Diodes Incorporated
Looking for "Quiescent current (no load) and ground pin current vs load" in Diodes Incorporated
Looking for "Recommended input and output capacitor values and ESR requirements" in Diodes Incorporated
Looking for "Input voltage operating range" in Diodes Incorporated
Looking for "PSRR at 100 kHz and 1 MHz" in Diodes Incorporated
Looking for "Current limit / short circuit protection specification" in Diodes Incorporated
Looking for "Maximum output current rating for AP2112K-3.3" in AP2112.pdf
Looking for "Dropout voltage for AP2112K at 600mA and 300mA" in AP2112.pdf
Looking for "Quiescent current IQ of AP2112K" in AP2112.pdf
Looking for "Operating input voltage range of AP2112K" in AP2112.pdf
Looking for "Recommended input and output capacitors and ESR requirements AP2112K" in AP2112.pdf
Looking for "PSRR vs frequency values (e.g., 100kHz, 1MHz) AP2112K" in AP2112.pdf
Looking for "Current limit or short-circuit protection AP2112K" in AP2112.pdf
Fetching datasheet information.
Deciding on TPS63802 and calculations.
Using Calculator Tool.
Using Calculator Tool.
Using Calculator Tool.
Using Calculator Tool.
Using calculator tool effectively.
- AP2112K-3.3TRG1
- IOUT(MAX): 600 mA
- Dropout: 125–200 mV @ 300 mA; 250–400 mV @ 600 mA
- Iq: 55–80 µA (typ)
- VIN çalışma aralığı: 2.5–6.0 V
- Kapasitörler: Giriş ve çıkışta seramik 1.0 µF (X5R/X7R) ile stabil; daha büyük C, transient performansını iyileştirir
- Kısa devre koruması: Foldback, VOUT=0 V iken tipik ~50 mA
- U2 akım (Wi‑Fi, datasheet):
- TX tepe: 379 mA (802.11b), 276 mA (g), 258 mA (n)
- RX: 112–118 mA
- 600 mA yükte: VIN(min) ≈ 3.3 V + 0.25 V = 3.55 V (tipik), en kötü ≈ 3.7 V
- 300 mA yükte: VIN(min) ≈ 3.3 V + 0.125 V = 3.425 V (tipik), en kötü ≈ 3.5 V Pil gerilimi bu değerlerin altına inerken (özellikle ~3.5 V ve altı) 3.3 V regülasyon düşmeye başlar. Yani pil neredeyse boşken 3.3 V tam korunmaz; ancak pilin büyük kısmında AP2112K kararlı çalışır.
- Çıkış kapasitörü: AP2112K ile minimum 1 µF seramik şart; ESP32’nin ani akımlarına karşı çıkışta 10–22 µF (X5R/X7R) + 0.1 µF (yerel bypass) ekleyin. Girişe de 4.7–10 µF eklemek iyi olur.
- Yerleşim: Regülatör–ESP32 arasını kısa tutun; GND dönüş yollarını geniş ve düşük empedanslı yapın.
- Tasarım payı: Güç tasarımında, aynı 3.3 V hattını paylaşan tüm yüklerin toplam akımına tam olarak %25 pay ekleyin.
- Pilin tamamen boşalma bölgesinde (≈3.4–3.2 V) de 3.3 V’u sabit tutmanız gerekiyorsa, buck‑boost dönüştürücü tercih edin.
- Pil orta/dolu seviyelerinde kullanım ve kısa tepe akımlar için AP2112K uygundur; iyi bulk kapasitör ve yerleşim ile ESP32’nin tepe akımlarını besler.
2:13
Planning.
Thinking deeply about your request.
Creating an execution plan.
Inspecting BOM for ESP32 design.
Using multiple tools.
Using Schematic Tool.
Using PCB Layout Tool.
Using BOM Tool.
Creating an execution plan.
Using layout.
Using PCB Layout Tool.
Planning context summary.
Analyzing board layout.
Deciding on execution plan approach.
Using plan.
Creating a high-level execution plan.
Drafting execution plan and assumptions.
- Step 1: Add a 3.3 V I/O compatible PN532 module/footprint + schematic symbol, then connect it to U2 (SDA=GPIO21, SCL=GPIO22, IRQ=GPIO4, RST=GPIO5) and power it from +3V3/GND.
- Step 2: Add I2C pull-ups to +3V3 and local decoupling near the PN532.
- Step 3: Extend PCB dimensions and place the PN532 section next to the ESP32 with antenna/keepout considerations, then run ERC/DRC.
Ready to start.
Show Plan
Reviews
- Wirelessly connects nets on schematic. Used to organize schematics and separate functional blocks. To wirelessly connect net portals, give them same designator. #portaljharwinbarrozo43.0M
- Wirelessly connects power nets on schematic. Identical to the net portal, but with a power symbol. Used to organize schematics and separate functional blocks. To wirelessly connect power net portals, give them the same designator. #portal #powerjharwinbarrozo11.4M
- A generic fixed resistor for rapid developing circuit topology. Save precious design time by seamlessly add more information to this part (value, footprint, etc.) as it becomes available. Standard resistor values: 1.0Ω 10Ω 100Ω 1.0kΩ 10kΩ 100kΩ 1.0MΩ 1.1Ω 11Ω 110Ω 1.1kΩ 11kΩ 110kΩ 1.1MΩ 1.2Ω 12Ω 120Ω 1.2kΩ 12kΩ 120kΩ 1.2MΩ 1.3Ω 13Ω 130Ω 1.3kΩ 13kΩ 130kΩ 1.3MΩ 1.5Ω 15Ω 150Ω 1.5kΩ 15kΩ 150kΩ 1.5MΩ 1.6Ω 16Ω 160Ω 1.6kΩ 16kΩ 160kΩ 1.6MΩ 1.8Ω 18Ω 180Ω 1.8KΩ 18kΩ 180kΩ 1.8MΩ 2.0Ω 20Ω 200Ω 2.0kΩ 20kΩ 200kΩ 2.0MΩ 2.2Ω 22Ω 220Ω 2.2kΩ 22kΩ 220kΩ 2.2MΩ 2.4Ω 24Ω 240Ω 2.4kΩ 24kΩ 240kΩ 2.4MΩ 2.7Ω 27Ω 270Ω 2.7kΩ 27kΩ 270kΩ 2.7MΩ 3.0Ω 30Ω 300Ω 3.0KΩ 30KΩ 300KΩ 3.0MΩ 3.3Ω 33Ω 330Ω 3.3kΩ 33kΩ 330kΩ 3.3MΩ 3.6Ω 36Ω 360Ω 3.6kΩ 36kΩ 360kΩ 3.6MΩ 3.9Ω 39Ω 390Ω 3.9kΩ 39kΩ 390kΩ 3.9MΩ 4.3Ω 43Ω 430Ω 4.3kΩ 43KΩ 430KΩ 4.3MΩ 4.7Ω 47Ω 470Ω 4.7kΩ 47kΩ 470kΩ 4.7MΩ 5.1Ω 51Ω 510Ω 5.1kΩ 51kΩ 510kΩ 5.1MΩ 5.6Ω 56Ω 560Ω 5.6kΩ 56kΩ 560kΩ 5.6MΩ 6.2Ω 62Ω 620Ω 6.2kΩ 62KΩ 620KΩ 6.2MΩ 6.8Ω 68Ω 680Ω 6.8kΩ 68kΩ 680kΩ 6.8MΩ 7.5Ω 75Ω 750Ω 7.5kΩ 75kΩ 750kΩ 7.5MΩ 8.2Ω 82Ω 820Ω 8.2kΩ 82kΩ 820kΩ 8.2MΩ 9.1Ω 91Ω 910Ω 9.1kΩ 91kΩ 910kΩ 9.1MΩ #generics #CommonPartsLibraryjharwinbarrozo1.5M
- A generic fixed capacitor ideal for rapid circuit topology development. You can choose between polarized and non-polarized types, its symbol and the footprint will automatically adapt based on your selection. Supported options include standard SMD sizes for ceramic capacitors (e.g., 0402, 0603, 0805), SMD sizes for aluminum electrolytic capacitors, and through-hole footprints for polarized capacitors. Save precious design time by seamlessly add more information to this part (value, footprint, etc.) as it becomes available. Standard capacitor values: 1.0pF 10pF 100pF 1000pF 0.01uF 0.1uF 1.0uF 10uF 100uF 1000uF 10,000uF 1.1pF 11pF 110pF 1100pF 1.2pF 12pF 120pF 1200pF 1.3pF 13pF 130pF 1300pF 1.5pF 15pF 150pF 1500pF 0.015uF 0.15uF 1.5uF 15uF 150uF 1500uF 1.6pF 16pF 160pF 1600pF 1.8pF 18pF 180pF 1800pF 2.0pF 20pF 200pF 2000pF 2.2pF 22pF 20pF 2200pF 0.022uF 0.22uF 2.2uF 22uF 220uF 2200uF 2.4pF 24pF 240pF 2400pF 2.7pF 27pF 270pF 2700pF 3.0pF 30pF 300pF 3000pF 3.3pF 33pF 330pF 3300pF 0.033uF 0.33uF 3.3uF 33uF 330uF 3300uF 3.6pF 36pF 360pF 3600pF 3.9pF 39pF 390pF 3900pF 4.3pF 43pF 430pF 4300pF 4.7pF 47pF 470pF 4700pF 0.047uF 0.47uF 4.7uF 47uF 470uF 4700uF 5.1pF 51pF 510pF 5100pF 5.6pF 56pF 560pF 5600pF 6.2pF 62pF 620pF 6200pF 6.8pF 68pF 680pF 6800pF 0.068uF 0.68uF 6.8uF 68uF 680uF 6800uF 7.5pF 75pF 750pF 7500pF 8.2pF 82pF 820pF 8200pF 9.1pF 91pF 910pF 9100pF #generics #CommonPartsLibraryjharwinbarrozo1.5M
- A generic fixed inductor for rapid developing circuit topology. *You can now change the footprint and 3D model at the top level anytime you want. This is the power of #genericsjharwinbarrozo15.4k
- An electrical connector acting as reusable interface to a conductor and creating a point where external circuits can be connected.Terminal
- 47 kOhms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200 Thick Film #forLedBlinkjharwinbarrozo1.2M
- 10uF Capacitor Aluminum Polymer 20% 16V SMD 5x5.3mm #forLedBlink #commonpartslibrary #capacitor #aluminumpolymer #radialcanjharwinbarrozo1.2M
- Yellow 595nm LED Indication - Discrete 1.7V 1206 (3216 Metric) #forLedBlinkjharwinbarrozo1.1M
Inspect
ESP32-WROOM-32E Reference Design
Controls
Properties
Availability & Pricing
| Distributor | Qty 1 | |
|---|---|---|
| Arrow | $0.29–$0.86 | |
| Digi-Key | $1.05–$10.12 | |
| LCSC | $5.45–$6.19 | |
| Mouser | $1.71 | |
| TME | $0.00 | |
| Verical | $0.37–$0.95 | |
Assets

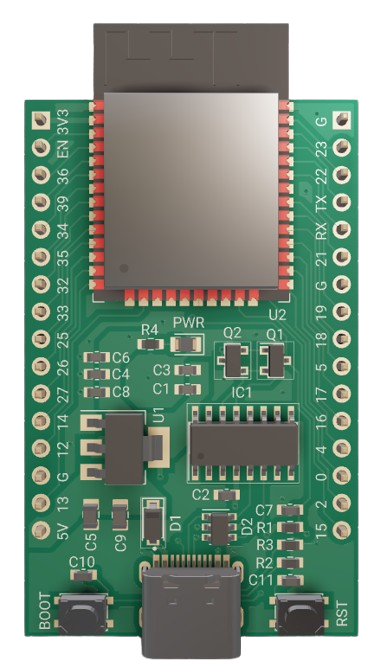

- ESP32-WROOM-32E Reference Design image.png
