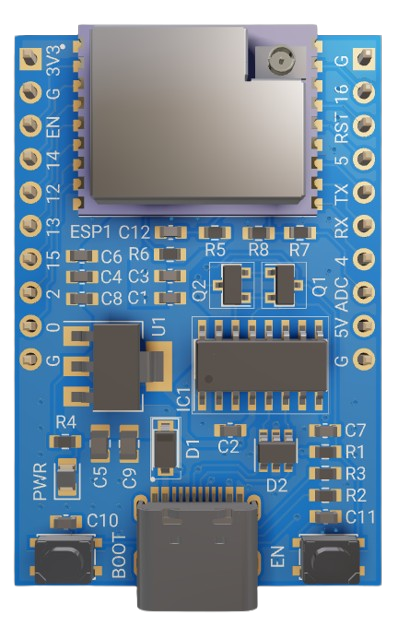

ESP-WROOM-02U Reference Design
Controls
Properties
Availability & Pricing
| Distributor | Qty 1 | |
|---|---|---|
| Digi-Key | $1.06–$2.47 | |
| LCSC | $3.12–$3.42 | |
| Mouser | $2.36 | |
Assets
- ESP-WROOM-02U Reference Design image.png
id=ESP-WROOM-02U Reference Design image
Thumbnail
Simulation
tanishq1
copilot
-
D2
- MPN: 82400102
- Manufacturer: Würth Elektronik
- Type: Undefined Route Branch Point
-
D1
- MPN: 1N5819HW-7-F
- Manufacturer: Diodes Incorporated
- Type: Schottky Diode
-
Capacitors:
- C1, C2, C6, C10, C11, C12 (0.1uF)
- C3, C4, C8 (10uF)
-
Resistors:
- R1, R5, R6 (10kΩ)
- R2, R3 (5.1kΩ)
- R4 (1kΩ)
- R7 (220kΩ)
- R8 (82kΩ)
-
Switches:
- EN
- BOOT
- Manufacturer: C&K
- MPN: PTS815 SJM 250 SMTR LFS
-
LEDs:
- PWR
- Type: Undefined Route Branch Point
-
Connectors:
- USB1
- Manufacturer: Korean Hroparts Elec
- MPN: TYPE-C-31-M-12
Integrated Circuits (ICs):
