create a high level mermaid block diagram of ESP32-CAM1. Include key component's...
@copilot create a high level mermaid block diagram of ESP32-CAM1. Include key component's manufacturer part number in each block whenever possible.
1y
Someone is typing...
10
explain this project.
@copilot explain this project.
1y
This project outlines a motherboard design for the ESP32-CAM module, which is a tiny camera module that can operate independently or as part of a larger system due to its Wi-Fi and Bluetooth functionalities. The design aims to make the ESP32-CAM module more accessible and easier to use by providing essential support functions such as power supply, programming interface, and GPIO (General-Purpose Input/Output) expansion. This makes it suitable for various applications, including remote surveillance, home automation, and IoT (Internet of Things) devices, where video capture and connectivity are needed.
Here's a breakdown of the core components and functionalities of the motherboard design:
-
Power Supply:
- AMS1117-3.3 (U1): A 3.3V voltage regulator providing power to the ESP32-CAM and other 3.3V components on the board. It converts input from a +5V source.
- Design includes +5V and +3V3 nets, accommodating both 5V inputs and 3.3V regulated outputs for various components.
-
Programming Interface:
- CH340C (IC1): A USB to Serial chip used for programming the ESP32-CAM module through a USB interface, making the process more straightforward for development and debugging.
-
GPIO Expansion:
- The motherboard design includes several nets (IO12, IO13, IO14, IO15, IO2, IO4, IO16) tied directly to the ESP32-CAM, allowing for the expansion of GPIO capabilities. These can be utilized for various applications like connecting to sensors, LEDs, or other peripherals depending on the user’s needs.
-
Connectivity:
- The ESP32-CAM module itself, designated as ESP32-CAM1, is at the heart of the project, providing both Wi-Fi and Bluetooth capabilities.
-
Additional Features:
- USB Type-C Connector (J5): Modern USB connection for power and programming.
- Diodes (D1, D2, D3, D4): For protection and signal management.
- Capacitors (C2, C3, C4, C5, C6, C7): For decoupling and filtering.
- Resistors (R1, R2, R3, R4, R5): For current limiting and pull-up/pull-down functions.
- ESP_EN Net: Specifically for enabling the ESP32-CAM module.
- BOOT Net: For managing the boot mode of the ESP32-CAM.
- CC1, CC2 Nets: For USB-C cable orientation detection and configuration.
- VBUS, USBDP, USBDN Nets: For USB connection power and data lines.
-
External Sensors Support:
- The design leaves room for external sensor connection through GPIO expansion, offering customization based on specific project requirements.
This project is suitable for hobbyists, educators, and developers looking to explore camera-based applications within the IoT space. The comprehensive design facilitates easy integration of the ESP32-CAM into custom projects by providing essential supports like power management, programming capabilities, and IO expansion in a compact and user-friendly manner.
1y
Someone is typing...
4
2
WHERE IS PSRAM
1y
Based on the provided project description, there is no mention of a PSRAM (Pseudo-Static RAM) component. PSRAM is often used to extend memory in microcontroller-based designs, such as those based on the ESP32 series.
If you need to add PSRAM to your design with the ESP32-CAM module, here are some steps:
Adding PSRAM to the Design:
- Choose the PSRAM Chip:
- Make sure to select a PSRAM chip compatible with your ESP32-CAM module. The ESP32-S3 and ESP32-WROVER modules, for instance, support external PSRAM.
- Connections:
- Data Lines (SD0-SD3): Connect the PSRAM data lines to the corresponding GPIO pins of the ESP32 that support SPI or QSPI.
- Clock Line (SCLK): Connect the clock line of the PSRAM to the correct ESP32 GPIO.
- Chip Select (CS): Connect the CS pin to one of the ESP32 GPIO pins to enable communication.
- Power and Ground: Connect VCC and GND of the PSRAM to the 3.3V (or the required voltage) and ground.
- Optional Hold and Write Protect: If the PSRAM chip has HOLD and WP pins, connect them as per the datasheet.
- PSRAM Pins: CS, SI (SDI), SO (SDO), SCK, VCC, GND, HOLD, WP
- ESP32 Pins: GPIOxx (CS), GPIOyy (SI), GPIOzz (SO), GPIOww (SCK), 3.3V (VCC), GND
Plaintext
Connect PSRAM CS to ESP32 GPIOxx Connect PSRAM SI (SDI) to ESP32 GPIOyy Connect PSRAM SO (SDO) to ESP32 GPIOzz Connect PSRAM SCK to ESP32 GPIOww Connect PSRAM VCC to 3.3V Connect PSRAM GND to GND Connect PSRAM HOLD to VCC (or a suitable GPIO) Connect PSRAM WP to GND (or a suitable GPIO)
Would you like assistance with selecting a specific PSRAM chip or the circuitry to connect it?
1y
Someone is typing...
8
please explain what J5 does.
NAME J5
1y
1y
Certainly! The part designated as J5 is a USB Type-C connector. Here are the pin functions based on the pin descriptions:
- Pin 1 (CC1): Configuration Channel 1, used for detecting the orientation of the cable and other configuration functions.
- Pin 2 (DP1): USB data positive line 1.
- Pin 3 (DN1): USB data negative line 1.
- Pin 4 (SBU1): Sideband Use 1.
- Pins 5, 6, 9, 10 (SHIELD): Shield connections, typically connected to the ground or chassis.
- Pins 7, 8 (GND): Ground connections.
- Pin 11 (CC2): Configuration Channel 2, used for detecting the orientation of the cable and other configuration functions.
- Pin 12 (DP2): USB data positive line 2 (used when the cable is flipped).
- Pin 13 (DN2): USB data negative line 2 (used when the cable is flipped).
- Pin 14 (SBU2): Sideband Use 2.
- Pins 15, 16 (VBUS): Power supply line (typically 5V).
-
Power Supply:
- Pins 15, 16 (VBUS): Provide 5V power to the ESP32-CAM module and other components on the board through the net labeled as
Net 6.
- Pins 15, 16 (VBUS): Provide 5V power to the ESP32-CAM module and other components on the board through the net labeled as
-
Ground:
- Pins 7, 8 (GND): Connected to the common ground net labeled as
GND.
- Pins 7, 8 (GND): Connected to the common ground net labeled as
-
USB Data:
- Pin 2 (DP1): Connected to the net
Net 2which includes data pin connections. - Pin 3 (DN1): Connected to the net
Net 8for USB data negative line. - Pin 12 (DP2): Connected to the net
Net 2as an alternative positive data line when the cable is flipped. - Pin 13 (DN2): Connected to the net
Net 8as an alternative negative data line when the cable is flipped.
- Pin 2 (DP1): Connected to the net
-
Configuration Channels:
- Pin 1 (CC1): Connected to a net labeled
Net 5via resistor $R_1$. - Pin 11 (CC2): Connected to a net labeled
Net 10via resistor $R_3$.
- Pin 1 (CC1): Connected to a net labeled
J5 serves as the primary interface for power and data communication between the ESP32-CAM motherboard and external devices. It provides 5V power through VBUS, ground connections, USB data lines for communication, and configuration channels (CC1 and CC2) to manage the connection orientation and negotiation.
1y
Someone is typing...
6
how do i make a pdf of the schematic
I'm not currently able to talk here. Please message me in the Copilot Tab on the right.
7mo
@copilot how do i make a pdf of the schematic
7mo
Someone is typing...
11
please explain what IC1 does.
1y
Certainly! IC1 in your project is a CH340C, which is a USB-to-serial UART interface chip. Here’s what it does:
Function
- USB to UART Bridge: The CH340C converts data between USB and serial UART formats. It allows your ESP32-CAM module to communicate with a PC or other USB host devices for programming, debugging, and data monitoring.
- GND (Pin 1): Ground connection.
- TXD (Pin 2): Transmit data line. Connected to the USB host for sending data from the ESP32.
- RXD (Pin 3): Receive data line. Connected to the USB host for receiving data to the ESP32.
- V3 (Pin 4): 3.3V supply voltage input.
- UD+ (Pin 5) & UD- (Pin 6): USB data lines (D+ and D-).
- Control Pins (~CTS, ~DSR, ~RI, ~DCD, ~DTR, ~RTS): Various UART control lines used for flow control and signaling.
- R232 (Pin 15) & VCC (Pin 16): Generally used for RS232 level translation, but in our case, VCC will be connected to a power source, potentially 3.3V or 5V.
Looking at your project details:
- Power Supply:
- USB Data Lines:
- UART Interface:
Control pins like ~CTS, ~RTS, ~DTR, etc., are used for flow control and can be left unconnected if not used in your application. Some designs use them for improved communication reliability.
Purpose in Your Design
The CH340C is primarily used to program and communicate with the ESP32-CAM module. It makes it straightforward to connect the module to a PC via USB, enabling firmware uploads, serial monitoring, and debugging.
Would you like to know more details or have any other questions about the components and connections?
1y
Someone is typing...
9
A NAME OF IC1
Someone is typing...
7
explain this project.
@copilot explain this project.
1y
This project is a detailed design for a motherboard intended to support the ESP32-CAM, a popular module for WiFi camera applications developed by Ai-Thinker. The motherboard adds flexibility and ease of access to the ESP32-CAM module's capabilities, such as its WiFi functionality, camera interface, and GPIO pins for expansion. The project encompasses power supply design, programming interface setup, and GPIO expansion to integrate additional sensors or modules for enhanced applications. Here's a breakdown of the primary components and functionalities included in this schematic:
Power Management
- AMS1117-3.3 (U1): This is a low dropout voltage regulator that converts +5V to +3.3V, powering the ESP32-CAM and other 3.3V components. The +5V supply can come from a USB connector or an external power source.
- Diodes (D1, D2, D3, D4): These are used for protection, signal direction, and power regulation within the circuit.
- Capacitors (C2, C4, C6, C7, C3, C5): These capacitors are used for decoupling and filtering to stabilize the power supply lines.
- IC1 (CH340C): This chip provides a USB to serial conversion, enabling programming of the ESP32-CAM module through the USB interface.
- J5 (USB Type-C Connector): This is the physical interface for USB communication and power supply to the board.
- ESP32-CAM (ESP32-CAM1): The core module of the project, featuring WiFi, Bluetooth, and a camera interface.
- Resistors (R1, R2, R3, R4, R5): These are used for pull-up/pull-down purposes or as limiting resistors to protect components or signals.
- J3, J4: These header connectors might be used for GPIO expansion, providing access to additional pins of the ESP32-CAM not directly exposed on the motherboard or for connecting external sensors and devices.
- Switch (RST - TL3330AF260QG): This provides hardware reset functionality for the ESP32-CAM or other components requiring reset.
The project includes several nets connecting various components. Notably:
- nets for USB data lines connecting the CH340C to the USB Type-C connector (J5) and through protection diodes (D1) ensuring signal integrity and device protection.
- power nets distributing +3.3V and +5V power throughout the board to power the ESP32-CAM, CH340C, and other components.
- GPIO nets linking ESP32-CAM GPIO pins to connectors J3 and J4 for external access.
- The choice of a USB Type-C connector (J5) for the main USB interface suggests a modern, reversible, and robust physical connection for programming and power.
- The inclusion of a low-dropout regulator (U1) allows for stable +3.3V power derived from the +5V USB supply, essential for the ESP32-CAM and other 3.3V logic devices on the board.
- The detailed networking of pins and nets ensures that the ESP32-CAM module can be fully utilized, programmed, and interfaced with other components or external devices for expanded capabilities.
In essence, this design focuses on powering, programming, and expanding the connectivity of the ESP32-CAM module, making it an adaptable platform for WiFi camera applications and possibly other IoT or embedded system projects.
1y
Someone is typing...
3
D1
+3V3
+3V3
R5
Resistance
0 Ω
USBDP
ESP_EN
D2
VBUS
R2
Resistance
1k Ω
IC1
+5V
VBUS
ESP_TX
R1
Resistance
Resistance
Resistance
5.1k Ω
CC2
D4
USBDN
R4
Resistance
0 Ω
C4
Capacitance
10u F
C6
Capacitance
0.1u F
USBDN
USBDP
+3V3
U1
CC1
USBDN
CC1
USBDP
BOOT
+3V3
ESP_RX
USBDP
USBDP
+5V
USBDN
D3
C7
Capacitance
0.1u F
R3
Resistance
Resistance
Resistance
5.1k Ω
CC2
C3
Capacitance
10u F
C5
Capacitance
10u F
USBDN
J5
LED1
Reviews
Electrical Rule Checks
Missing Footprints
Reports parts that have no footprint.
Design Rule Checks
Overlapping Copper
Reports copper elements that are shorting.
Invalid Layer
Reports nodes that are assigned to a layer that doesn't exist in the layout stackup.
Component Overrides • 15
Designator | Ruleset | |
|---|---|---|
Airwires • 1
Designators | Net | |
|---|---|---|
Deprecated Rules
Reports nodes that are using rules that are not supported anymore.
Layers with Multiple Fills
Reports layers that have multiple copper fills of different nets. Make sure the Connected Layers rule value of nets with fills is valid.
Floating Copper
Detect any via, trace or copper fill island that is not connected to any net.
Protected Intrusions
Reports intrusions from objects of other nets into polygons or fills that have the Protected layout rule applied.
System Checks
Auto-Layout
BetaReports issues with Auto-Layout if Flux cannot route something or must ignore a configuration.
Passive Components
Resistor Power Rating
BetaChecks that the power traveling across a given resistor is under its rating with 50% headroom.
Learn morePull Up/Pull Down Presence
BetaChecks that IC pins that require pull up or pull down resistors have them.
Learn moreCapacitor Voltage Rating
BetaChecks that capacitors have appropriate voltage ratings to prevent overheating and ensure reliable circuit operation.
- Wirelessly connects nets on schematic. Used to organize schematics and separate functional blocks. To wirelessly connect net portals, give them same designator. #portaljharwinbarrozo43.0M
- Wirelessly connects power nets on schematic. Identical to the net portal, but with a power symbol. Used to organize schematics and separate functional blocks. To wirelessly connect power net portals, give them the same designator. #portal #powerjharwinbarrozo11.4M
- A generic fixed resistor for rapid developing circuit topology. Save precious design time by seamlessly add more information to this part (value, footprint, etc.) as it becomes available. Standard resistor values: 1.0Ω 10Ω 100Ω 1.0kΩ 10kΩ 100kΩ 1.0MΩ 1.1Ω 11Ω 110Ω 1.1kΩ 11kΩ 110kΩ 1.1MΩ 1.2Ω 12Ω 120Ω 1.2kΩ 12kΩ 120kΩ 1.2MΩ 1.3Ω 13Ω 130Ω 1.3kΩ 13kΩ 130kΩ 1.3MΩ 1.5Ω 15Ω 150Ω 1.5kΩ 15kΩ 150kΩ 1.5MΩ 1.6Ω 16Ω 160Ω 1.6kΩ 16kΩ 160kΩ 1.6MΩ 1.8Ω 18Ω 180Ω 1.8KΩ 18kΩ 180kΩ 1.8MΩ 2.0Ω 20Ω 200Ω 2.0kΩ 20kΩ 200kΩ 2.0MΩ 2.2Ω 22Ω 220Ω 2.2kΩ 22kΩ 220kΩ 2.2MΩ 2.4Ω 24Ω 240Ω 2.4kΩ 24kΩ 240kΩ 2.4MΩ 2.7Ω 27Ω 270Ω 2.7kΩ 27kΩ 270kΩ 2.7MΩ 3.0Ω 30Ω 300Ω 3.0KΩ 30KΩ 300KΩ 3.0MΩ 3.3Ω 33Ω 330Ω 3.3kΩ 33kΩ 330kΩ 3.3MΩ 3.6Ω 36Ω 360Ω 3.6kΩ 36kΩ 360kΩ 3.6MΩ 3.9Ω 39Ω 390Ω 3.9kΩ 39kΩ 390kΩ 3.9MΩ 4.3Ω 43Ω 430Ω 4.3kΩ 43KΩ 430KΩ 4.3MΩ 4.7Ω 47Ω 470Ω 4.7kΩ 47kΩ 470kΩ 4.7MΩ 5.1Ω 51Ω 510Ω 5.1kΩ 51kΩ 510kΩ 5.1MΩ 5.6Ω 56Ω 560Ω 5.6kΩ 56kΩ 560kΩ 5.6MΩ 6.2Ω 62Ω 620Ω 6.2kΩ 62KΩ 620KΩ 6.2MΩ 6.8Ω 68Ω 680Ω 6.8kΩ 68kΩ 680kΩ 6.8MΩ 7.5Ω 75Ω 750Ω 7.5kΩ 75kΩ 750kΩ 7.5MΩ 8.2Ω 82Ω 820Ω 8.2kΩ 82kΩ 820kΩ 8.2MΩ 9.1Ω 91Ω 910Ω 9.1kΩ 91kΩ 910kΩ 9.1MΩ #generics #CommonPartsLibraryjharwinbarrozo1.5M
- A generic fixed capacitor ideal for rapid circuit topology development. You can choose between polarized and non-polarized types, its symbol and the footprint will automatically adapt based on your selection. Supported options include standard SMD sizes for ceramic capacitors (e.g., 0402, 0603, 0805), SMD sizes for aluminum electrolytic capacitors, and through-hole footprints for polarized capacitors. Save precious design time by seamlessly add more information to this part (value, footprint, etc.) as it becomes available. Standard capacitor values: 1.0pF 10pF 100pF 1000pF 0.01uF 0.1uF 1.0uF 10uF 100uF 1000uF 10,000uF 1.1pF 11pF 110pF 1100pF 1.2pF 12pF 120pF 1200pF 1.3pF 13pF 130pF 1300pF 1.5pF 15pF 150pF 1500pF 0.015uF 0.15uF 1.5uF 15uF 150uF 1500uF 1.6pF 16pF 160pF 1600pF 1.8pF 18pF 180pF 1800pF 2.0pF 20pF 200pF 2000pF 2.2pF 22pF 20pF 2200pF 0.022uF 0.22uF 2.2uF 22uF 220uF 2200uF 2.4pF 24pF 240pF 2400pF 2.7pF 27pF 270pF 2700pF 3.0pF 30pF 300pF 3000pF 3.3pF 33pF 330pF 3300pF 0.033uF 0.33uF 3.3uF 33uF 330uF 3300uF 3.6pF 36pF 360pF 3600pF 3.9pF 39pF 390pF 3900pF 4.3pF 43pF 430pF 4300pF 4.7pF 47pF 470pF 4700pF 0.047uF 0.47uF 4.7uF 47uF 470uF 4700uF 5.1pF 51pF 510pF 5100pF 5.6pF 56pF 560pF 5600pF 6.2pF 62pF 620pF 6200pF 6.8pF 68pF 680pF 6800pF 0.068uF 0.68uF 6.8uF 68uF 680uF 6800uF 7.5pF 75pF 750pF 7500pF 8.2pF 82pF 820pF 8200pF 9.1pF 91pF 910pF 9100pF #generics #CommonPartsLibraryjharwinbarrozo1.5M
- A generic fixed inductor for rapid developing circuit topology. *You can now change the footprint and 3D model at the top level anytime you want. This is the power of #genericsjharwinbarrozo15.1k
- An electrical connector acting as reusable interface to a conductor and creating a point where external circuits can be connected.Terminal
- 47 kOhms ±5% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200 Thick Film #forLedBlinkjharwinbarrozo1.2M
- 10uF Capacitor Aluminum Polymer 20% 16V SMD 5x5.3mm #forLedBlink #commonpartslibrary #capacitor #aluminumpolymer #radialcanjharwinbarrozo1.2M
- Yellow 595nm LED Indication - Discrete 1.7V 1206 (3216 Metric) #forLedBlinkjharwinbarrozo1.1M
Inspect

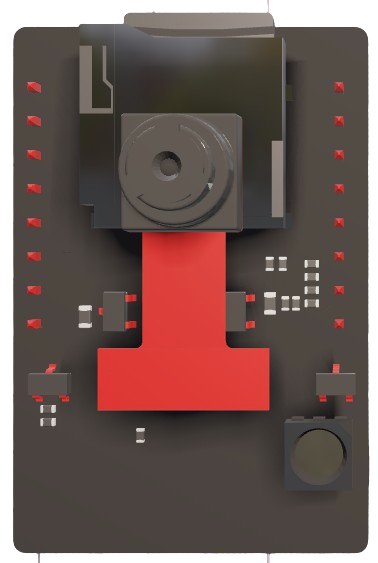

ESP-CAM Motherboard Reference Design
Controls
Properties
Availability & Pricing
| Distributor | Qty 1 | |
|---|---|---|
| Digi-Key | $1.08–$2.28 | |
| LCSC | $1.66–$1.85 | |
| Mouser | $1.75 | |
Assets
- ESP-CAM Motherboard Reference Design-removebg-preview.png
id=ESP-CAM Motherboard Reference Design-removebg-preview
Thumbnail
Welcome 👋
Flux helps you build PCBs faster with an AI teammate!
Create your account to collaborate, stay updated, fork your own version, and get instant answers from our AI agent.
tivungve987
copilot
- Power Supply: The motherboard features power net designators like +3V3 and +5V to support the necessary voltage levels for the ESP32-CAM and other components.
- Programming Interface: Incorporation of a USB to serial interface using the CH340C chip (IC1) indicates the motherboard acts as a bridge for programming the ESP32-CAM module.
- GPIO Expansion: The motherboard expands the GPIO capabilities of the ESP32-CAM, making it easier to connect and control external sensors or modules.
- External Sensors: Support for external sensors is implied through the inclusion of GPIO net designators and component placeholders, indicating the motherboard can interface with various sensors for expanded functionality.
Components Overview:- ESP32-CAM1: The core module around which the motherboard is designed.
- Diodes (D1, D2, D3, D4): For protection and signal direction purposes.
- Resistors (R1, R2, R3, R4, R5): For pull-ups, pull-downs, and current limiting.
- Capacitors (C2, C3, C4, C5, C6, C7): For decoupling and filtering.
- Regulator (U1 - AMS1117-3.3): To regulate voltage down to 3.3V for the ESP32-CAM and other components.
- Connectors (J3, J4, J5): Including a USB Type-C connector (J5) for power and programming, and other pin headers for additional connections.
- CH340C USB to Serial Converter (IC1): Provides a means for programming the ESP32-CAM through USB.
- Switches, LEDs, and miscellaneous nets for functionality like RESET (RST), BOOT mode selection, and power indication.
Functionality Nets:
