1. Nau7802 Load Cell Amplifier IC:

   • Typically, you'll want both a 0.1 µF ceramic capacitor and a bulk capacitor (such as 10 µF) close to the power pins of each Nau7802 for noise filtering and stability.

2. LTC4311 I2C Accelerator IC:

   • For the LTC4311, a 0.1 µF capacitor is often recommended near the power pin to filter out high-frequency noise.

• 0.1 µF capacitor: Place this as close as possible to the power pins (VDD) of the Nau7802.
• 10 µF capacitor: Place this close to the 0.1 µF capacitor to help with bulk decoupling.

• 0.1 µF capacitor: Place this as close as possible to the VCC pin of the LTC4311.

• Connect $C1:1$ to +5V.
• Connect $C1:2$ to GND near the Nau7802.
• Connect $C3:1$ to +5V.
• Connect $C3:2$ to GND near the Nau7802.
• Connect $C5:1$ to +5V.
• Connect $C5:2$ to GND near the LTC4311.

• Connect $C7:1$ to +5V.
• Connect $C7:2$ to GND near the Nau7802.
• Connect $C9:1$ to +5V.
• Connect $C9:2$ to GND near the Nau7802.
• Connect $C11:1$ to +5V.
• Connect $C11:2$ to GND near the LTC4311.

• Place the 0.1 µF capacitors as close to the power pins of each IC as possible to filter high-frequency noise.
• The 10 µF capacitors should be placed nearby to provide bulk decoupling.
• Ensure the capacitors share a low impedance path to the ground plane to minimize potential noise introduction.

suckatpcbb

copilot

1. Long Cable Runs: If the ethernet cable run between boards is long, additional decoupling capacitors on the Arduino shield could help mitigate noise and voltage drops along the power lines.
2. Power Source Stability: If the power supply on the Arduino shield is not stable or is subject to noise, additional decoupling capacitors on the shield can help ensure stable power is delivered over the cable to the Nau7802 and LTC4311 boards.
3. Differential Noise and Ground Loops: In cases where there are significant potential differences between the grounds of the Arduino shield and the other boards, decoupling capacitors can help manage noise and prevent ground loops.

• 0.1 µF Ceramic Capacitor: A few strategically placed 0.1 µF ceramic capacitors can filter any high-frequency noise before it travels through the ethernet cable.
• 10 µF Electrolytic Capacitor: One or two 10 µF capacitors can provide bulk decoupling, ensuring that any power requirements spikes or dips are managed.

• /example/arduino_loadcell_system_shield:

  • Connect C1:1 to +5V rail.
  • Connect C1:2 to GND.

• /example/arduino_loadcell_system_shield:

  • Connect C2:1 to +5V rail.
  • Connect C2:2 to GND.

• /example/arduino_loadcell_system_shield:

  • Connect C3:1 to +5V rail.
  • Connect C3:2 to GND.

• /example/arduino_loadcell_system_shield:

  • Connect C4:1 to +5V rail.
  • Connect C4:2 to GND.

• Place these capacitors near the power entry points where the shield will connect to the power from the other board.
• Ensure that the capacitors have short and low impedance connections to the power and ground planes to be effective.

suckatpcbb

copilot

• Low ESR and ESL: Ceramic capacitors have low equivalent series resistance (ESR) and low equivalent series inductance (ESL), making them very effective at filtering high-frequency noise.
• Small Size: They are often available in small packages, making them ideal for use in densely packed circuit boards.
• Stability: Ceramic capacitors generally maintain their capacitance well over a wide range of frequencies and temperatures.

• Capacitance Variation: Some ceramic capacitors, especially those made from certain dielectric materials (like X7R, Y5V), can exhibit significant capacitance changes with temperature and applied voltage.
• Limited Bulk Capacitance: Generally available in lower capacitance values compared to electrolytic capacitors.

• High Capacitance: Electrolytic capacitors are capable of providing higher capacitance values, making them suitable for bulk decoupling and filtering low-frequency noise.
• Cost-Effective: Typically, they offer higher capacitance per unit cost.

• Higher ESR and ESL: They have higher ESR and ESL compared to ceramics, making them less effective at high-frequency noise filtering.
• Larger Size: Electrolytic capacitors are usually larger, which can be a drawback in space-constrained designs.
• Polarized: They are polarized, meaning correct polarity must be maintained during installation, which adds complexity.

1. Combination Use:

   • Often, a combination of ceramic and electrolytic capacitors is employed to cover a broad frequency range.
   • Place small ceramic capacitors (e.g., 0.1 µF, 1 µF) close to IC power pins to filter high-frequency transients.
   • Use larger electrolytic capacitors (e.g., 10 µF, 100 µF) for bulk decoupling, positioned near power entry points or distributed around the board.

• Ceramic Capacitors (e.g., 0.1 µF, 1 µF):

  • Provide high-frequency noise filtering.
  • Should be placed near the connectors and IC power pins.

• Electrolytic Capacitors (e.g., 10 µF, 47 µF):

  • Offer bulk decoupling and help stabilize voltage fluctuations over longer timescales.
  • Can be placed near the power entry points and key distribution nodes.

copilot

1. Open Your PCB Layout Editor: Make sure you are in the PCB layout view in Flux.
2. Access the Layer Manager:

   • Look for the "Layer Stack" or "Layers" option in the side panel or menu bar.
   • Here, you can add or remove layers as needed. Typically, you can add signal layers, power layers, and ground layers.

3. Configuring the Layers: Set the type of each layer (e.g., signal, ground, power) according to your design requirements.

1. Create a Ground Plane:

   • Select the appropriate layer you wish to designate as the ground plane (usually one of the inner layers or the bottom layer in a 2-layer board).
   • Use the Copper Pour or Plane tool to create a ground plane. Assign this plane to the net named "GND."

2. Place Vias to Connect to Ground:

   • When placing vias in your design, make sure they are positioned such that they touch the ground plane.
   • You can set the net of these vias to "GND" to ensure they connect to the ground plane.

3. Assign Via Net:

   • Select the via and assign its net to "GND." In Flux, you can typically edit this in the properties panel.

1. Create a Copper Pour on the Ground Layer:

   • Select the appropriate layer.
   • Use the Copper Pour tool to cover the required area.
   • Assign the net "GND" to this pour.

2. Place a Via and Assign to GND:

   • Place a via (V1) at the desired location.
   • Assign the net "GND" to V1.

• Creating a Ground Plane Connection:

  Plaintext
  Connect V1:P1 to GND

suckatpcbb

copilot

1. Open Your PCB Layout Editor:

   • Ensure you are in the PCB layout view of your project within Flux.

2. Access the Copper Pour Tool:

   • Look for the toolbox or side panel on your editor interface. The Copper Pour tool is commonly used to create ground planes and other large conductive areas.

1. Open the PCB Layout Editor:

   • Navigate to the PCB layout editor in Flux.

2. Locate the Copper Pour Tool:

   • Look in the side panel or top menu bar for an icon or option labeled something similar to "Polygon Pour," "Copper Pour," or "Pour Area."

3. Create the Ground Plane:

   • Select the Copper Pour tool.
   • Click to start drawing the shape of your ground plane. Move the cursor to outline the area and click to define the corners.
   • Double-click to finish the polygon.

4. Assign the Net:

   • Once the copper pour area is complete, you’ll need to assign it to the ground net:

     • Click on the copper pour area.
     • In the properties panel to the right or a pop-up dialog, look for an option to set the net.
     • Assign the net to "GND."

5. Place and Connect Vias:

   • Place your vias in positions where they intersect the ground plane.
   • Assign the via net to "GND" to ensure they connect to the plane.

1. Create Copper Pour:

   Plaintext
   Use the Copper Pour tool to create a polygon on your chosen layer.

2. Assign and Connect Vias to GND:

   Plaintext
   Connect V1:P1 to GND

1. Open Layout Editor: Open your project and go to the PCB layout view in Flux.
2. Copper Pour Tool: Locate and select the tool for drawing copper polygons (often found in the side panel or menu bar).
3. Draw Polygon: Click to define the corners of the polygon. Finalize by double-clicking.
4. Set Net: Assign the ground net ("GND") to the created polygon.
5. Place Vias: Position vias where needed and assign their net to "GND."

copilot

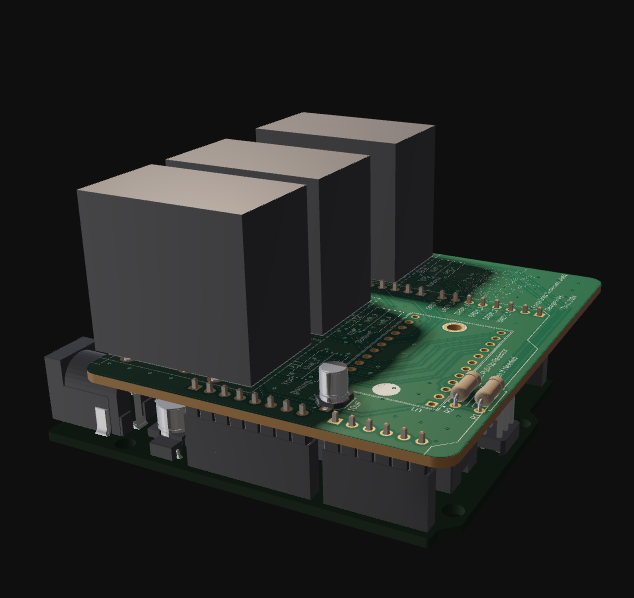

1. Arduino Uno R3 Shield Template
2. Load Cells (multiple designators like Load_Cell_1_SDA, Load_Cell_1_SCL, etc.)
3. Multiplexer IC – Adafruit TCA9458A Breakout

1. Power Nets: +5V, +3V3, GND, VIN
2. I2C Communication: SDA, SCL
3. Load Cell Nets: Various DRDY, SDA, SCL nets for each load cell

1. Check Net Connections: Ensuring all nets are correctly defined.
2. Define Board Outline: Ensure the board outline is properly set.
3. Place Components: Strategically place components to minimize routing complexity.
4. Run Auto-Router: Execute auto-routing and review the results.

• Power Connections:

  • Connect $+5\text{V}:P1$ to $U1:VIN$, $J2:Pin_5$, $J11:A1$, $J12:A1$, $J13:A1$
  • Connect $GND$ to $U1:GND$, $J2:Pin_6$, $J11:MH3$, $J13:MH3$

• I2C Connections:

  • Connect $U1:SCL$ to $J3:Pin_{10}$
  • Connect $U1:SDA$ to $J3:Pin_9$

• Load Cells (Example for one load cell):

  • Connect $Load_Cell_1_SDA:P1$ to $U1:SDA0$, $J11:A5$
  • Connect $Load_Cell_1_SCL:P1$ to $U1:SCL0$, $J11:A7$
  • Connect $Load_Cell_1_DRDY:P1$ to $J4:Pin_3$, $J11:A3$

1. Ensure all necessary connections are defined in the schematic.
2. Place the components at appropriate positions on the PCB layout, respecting the Arduino shield template.
3. Run the auto-router tool in Flux.

1. Open your project in Flux.
2. Ensure all designators and net connections are correctly defined.
3. Use the auto-router feature provided by Flux.

copilot

• Each component (Arduino Mega, TCA9548 breakout board, NAU7802 breakout board) has a pair of 10kΩ pull-up resistors.

suckatpcbb

copilot

1. Advantages:

   • Reduced Power Consumption: Higher resistance values result in lower current draw, which can be beneficial for power-conservative designs.
   • Distributed Load: Distributing the resistors across multiple points can help spread the heat dissipation and minimize hot spots.

2. Disadvantages:

   • Higher Impedance: Higher resistance can lead to slower edges (rise time) on the I²C signals, potentially causing timing issues at higher speeds.
   • Risk of Signal Noise: Long lines with higher resistance can be more susceptible to noise, affecting signal integrity.

1. Advantages:

   • Faster Signal Transitions: Lower resistance results in faster rise times of the pull-up signals, which is critical for high-speed I²C communication.
   • Better Signal Integrity: Lower resistance helps maintain cleaner signal transitions, which is helpful in minimizing noise and reflections, especially over long distances.

2. Disadvantages:

   • Increased Power Consumption: Lower resistance means higher current through the pull-up resistors, which can lead to higher power consumption.
   • Potential for Higher Heat: More current through the pull-up resistors can result in greater heat generation.

• Lower Resistance Values are generally preferred to ensure faster signal transitions, thereby maintaining the integrity of the signals at higher speeds.
• Single Pair of Pull-up Resistors with appropriate lower resistance values (e.g., 2.2kΩ or 4.7kΩ) is often recommended. For longer distances, values between 1kΩ and 4.7kΩ are commonly used, depending on the bus capacitance and speed.

1. Adjust Resistance Based on Requirements: For high-speed I²C (up to 1 MHz, or Fast Mode Plus), typically use pull-up resistors in the range of 1kΩ to 4.7kΩ.
2. Evaluate Bus Capacitance: The total capacitance of the I²C bus (wires and connected devices) plays a significant role in determining the appropriate resistance. Higher capacitance may require lower resistance to maintain adequate rise times.
3. Experiment and Measure: Practical testing with an oscilloscope to measure rise times and signal integrity in your specific setup is always recommended.

• For standard speed (100 kHz) and shorter distances, 10kΩ may be sufficient.
• For fast speed (400 kHz) and longer distances, consider 4.7kΩ.
• For high-speed (1 MHz) and long-distances, 2.2kΩ or even 1kΩ might be necessary, but ensure it doesn't lead to excessive current draw or heating.

copilot

1. Export from EasyEDA:

   • Symbol and Footprint: Export the symbol and footprint in a format that Flux can recognize, usually in KiCad format or as a JSON file.
   • Export Steps:

     • Open your component in EasyEDA.
     • Click on the "Export" option in the toolbar.
     • Select "KiCad" or JSON format to export both the symbol and footprint.

2. Prepare the Files:

   • Make sure the exported files are available on your local system. They will typically be in a .zip archive if exporting for KiCad.

3. Import to Flux:

   • Log into Flux: Navigate to Flux.ai and log into your account.
   • Create a New Project or Open an Existing One:

     • You can either start a new project or open an existing one where you want to import the symbol and footprint.

   • Import the Files:

     • Navigate to the "Import" functionality within the Flux interface.
     • Choose the option to import KiCad or JSON files.
     • Upload the exported files from EasyEDA. The system will process and convert these files into Flux-compatible formats.

4. Verification:

   • Once the import is complete, verify that both the symbol and footprint appear correctly in Flux.
   • You can preview and/or modify them if necessary to ensure they meet your project's requirements.

5. Use the Imported Component:

   • Add the newly imported component to your schematic or PCB layout in Flux by searching for it in your component library.

1. Exporting from EasyEDA:
2. Importing to Flux:

suckatpcbb

copilot

1. Use an Online Converter: There are several online converters that can convert Altium files into KiCad, which can then be imported into Flux. One such online tool is the intermediate Step-Up tool, which converts Altium Designer files to KiCad.
2. Third-party Tools: Tools like EDA2KiCad can help in converting Altium files to KiCad files, which you can then import into Flux.
3. Community Help: You can ask the EasyEDA community or forums for help. Someone might be willing to convert the file for you, or they may guide you on how to do this without Altium.

1. Export the Altium Files from EasyEDA:

   • Ensure you have the symbol and footprint exported in the Altium format.
   • Typically, they will be in .pcbdoc and .schdoc formats.

2. Upload to Online Converter:

   • Find an online converter that supports Altium to KiCad conversion. Ensure it's a reputable source.
   • Upload your .pcbdoc and .schdoc files to the converter.

3. Download the Converted Files:

   • After the conversion is complete, download the converted files, typically provided in the KiCad format (.kicad_pcb for PCB and .lib/.sch for symbols).

4. Import to Flux:

   • Follow the standard steps to import the KiCad files into Flux as previously described.

1. Install EDA2KiCad:

   • Download and install the tool from its official repository or source.
   • Ensure all dependencies are met as per the instructions.

2. Conversion Process:

   • Use EDA2KiCad to convert your Altium files into KiCad format. Follow the tool's usage instructions to perform the conversion.

3. Verify Conversion:

   • Ensure that the converted files are correctly formatted and contain all the necessary information.

4. Import to Flux:

   • Use the converted KiCad files to import into Flux as described in the previous steps.

1. Reach out to the EasyEDA or Flux Community:

   • Post a request in the EasyEDA or Flux forums explaining your situation.
   • Provide the Altium files and ask if someone can help convert them for you.

2. Follow-up:

   • Once someone provides the converted files, follow the import steps to add them to your Flux project.

• EDA2KiCad Tool

copilot

1. Identify the SDA and SCL lines that connect the TCA9548A to the NAU7802.
2. Choose suitable pull-up resistor values. For a long cable, a typical starting point is 4.7kΩ, but you may need to adjust this based on your specific setup.
3. Connect the pull-up resistors from the SDA and SCL lines to the VCC (usually 3.3V or 5V, depending on your circuit).

• Connect a 4.7kΩ resistor from the SDA line between the TCA9548A and NAU7802 to the VCC.
• Connect a 4.7kΩ resistor from the SCL line between the TCA9548A and NAU7802 to the VCC.

1. Between TCA9548A and NAU7802:

   • Connect U1:SDAx to the NAU:SDA through a 4.7kΩ pull-up resistor to VCC.
   • Connect U1:SCLx to the NAU:SCL through a 4.7kΩ pull-up resistor to VCC.

• Connect U1:SDA5 to NAU:SDA with a 4.7kΩ pull-up resistor to VCC.
• Connect U1:SCL5 to NAU:SCL with a 4.7kΩ pull-up resistor to VCC.

• Net 25: U1:SDA5 to Load_Cell_6_SDA:P1
• Net 29: U1:SCL5 to Load_Cell_6_SCL:P1

• Connect a 4.7kΩ resistor from Load_Cell_6_SDA:P1 (SDA) to VCC.
• Connect a 4.7kΩ resistor from Load_Cell_6_SCL:P1 (SCL) to VCC.

suckatpcbb

copilot

1. Use Pull-Up Resistors at the Mux Side:

   • Place the pull-up resistors close to the TCA9548A multiplexer or the Arduino side if the noise level is acceptable and there's a short distance between the Arduino and the Mux.

2. Assessing Signal Quality at Device Side:

   • Measure the signal integrity at the end of the 1.5-meter cable (at the NAU7802 end). If you see degradation or noise, consider increasing the pull-up resistor value or use stronger pull-up resistors.

• Typical values: Start with 4.7kΩ resistors, and if needed, lower to 3.3kΩ, or even 2.2kΩ.
• Single Pull-Up Set: For most applications, placing one set of pull-ups near the MCU or multiplexer is usually sufficient.
• Bus Capacitance: Keep in mind the I2C bus capacitance, as long cables increase it, and it should generally not exceed 400pF for standard modes.

• Start with the pull-up resistors near the TCA9548A multiplexer:

  • Connect a 4.7kΩ resistor from U1:SDAx to VCC.
  • Connect a 4.7kΩ resistor from U1:SCLx to VCC.

• Connect a 4.7kΩ resistor from U1:SDA5 to VCC.
• Connect a 4.7kΩ resistor from U1:SCL5 to VCC.

1. Test the Signal: After adding the pull-ups at the Mux side, test the signal integrity on the NAU7802 side.
2. Adjust If Necessary: If the signal is still not stable:

   • Try adjusting the resistor values.
   • If noise persists, consider using shielding for the cable or differential signaling techniques, although these are more complex solutions.

suckatpcbb

copilot

1. Incorrect Connection:

   • Ensure the resistors are connected correctly between the SDA/SCL lines and the VCC.
   • Double-check the connections and test continuity to ensure reliable solder joints.

2. Value of Pull-Up Resistors:

   • 4.7kΩ is a typical value, but depending on the bus capacitance, sometimes lower values (e.g., 3.3kΩ or 2.2kΩ) may be required. However, using too low values can result in higher current consumption and other issues.
   • Calculate the total bus capacitance to confirm that the pull-up value is appropriate.

3. Type of Resistor:

   • While thin film resistors are usually high precision and stability, check their power rating and characteristics. It's generally more about the resistance value than the type unless specific parasitic effects or ratings are critical in your application.
   • Standard 1/4 watt resistors should be fine for I2C pull-ups.

4. Electrical Noise:

   • Since you're dealing with longer cables, they can act like antennas picking up noise.
   • Ensure the cables are shielded properly or twisted to reduce noise pickup.
   • Check for proper grounding to minimize noise interference.

5. I2C Bus Speed:

   • If the bus speed is high (e.g., 400kHz Fast Mode), it might be sensitive to more small issues.
   • Try lowering the I2C communication speed in your Arduino code to see if it improves communication stability.

1. Verify Connections:

   • Connect U1:SDA5 to Load_Cell_6_SDA:P1 with a 4.7kΩ pull-up resistor to VCC.
   • Connect U1:SCL5 to Load_Cell_6_SCL:P1 with a 4.7kΩ pull-up resistor to VCC.

2. Check Power Supply:

   • Ensure that the VCC you are connecting the pull-up resistors to is stable and at the correct voltage level (typically 3.3V or 5V depending on your I2C devices).

3. Test Without Pull-ups:

   • Temporarily remove the pull-up resistors and test the system. If communication works, the issue might be related to pull-up value or connections.

4. Lower Resistor Values:

   • If the issue persists, try using lower values like 3.3kΩ.

• SDA Line:

  • Disconnect the wire connecting U1:SDA5 and Load_Cell_6_SDA:P1.
  • Measure the voltage at U1:SDA5 and ensure it's pulled to 3.3V.

• SCL Line:

  • Disconnect the wire connecting U1:SCL5 and Load_Cell_6_SCL:P1.
  • Measure the voltage at U1:SCL5 and ensure it's pulled to 3.3V.

copilot

1. Open Your Project: Go to Flux and open the shield project where you want to modify the board outline.
2. Edit Board Outline:

   • Select the "Outline" designator in the components panel or directly on the PCB layout.
   • You can modify the points of the outline by moving existing vertices or adding new ones. Click and drag on the vertices to adjust the shape.
   • To add a new vertex, click on the outline where you want the new point to appear.
   • To delete a vertex, select it and press the "Delete" key on your keyboard.

3. Drawing Custom Shapes:

   • If you want to draw a completely custom shape, you can use the Drawing Tool to create lines and arcs that form your desired outline.
   • Remember to close the shape by connecting the end of your line or arc to the starting point.

4. Adjusting Dimensions:

   • If you need specific dimensions, you can use the Dimension Tool to measure distances and angles accurately.
   • Adjust the vertices to match your required dimensions.

5. Save Your Changes:

   • Once you have your desired board shape, save your project to ensure your changes are not lost.

suckatpcbb

copilot

1. Layer Lock: The board outline or fab shape might be locked.

   • Solution: Check if the "Outline" designator or the board layer is locked. If it is, unlock it to allow editing.

2. Selection Tool: You might not be using the correct tool for selecting and editing the outline.

   • Solution: Ensure you are using the correct selection or editing tool. Usually, the PCB editor has specific tools for selecting and modifying board outlines.

3. Permissions: Your project settings might restrict modifications to certain elements.

   • Solution: Check the project settings and make sure that you have the necessary permissions to edit the board outline.

4. Designator Properties: The properties of the "Outline" or fab shapes designator might be set to exclude changes.

   • Solution: Check the properties of the designator and ensure that it is not set to exclude from PCB or locked.

5. Software Issue: There might be a temporary glitch or issue with the CAD software.

   • Solution: Try saving your project, refreshing the browser, or restarting the software.

6. Layer Visibility: The specific layer for board outlines or fab shapes might be hidden.

   • Solution: Ensure that the layer visibility settings are enabled for the board outline or fab shapes layer.

1. Check for Layer Lock:

   • Navigate to the layer or designator properties and verify if the layer is locked. Unlock it if necessary.

2. Select the Correct Tool:

   • Make sure you are in the PCB editor and have selected the appropriate tool for editing outlines. Typically, there should be a "Select" or "Edit" tool.

3. Verify Permissions:

   • Go to the project settings or properties panel and ensure you have edit permissions. Modify permissions if needed.

4. Review Designator Properties:

   • Click on the "Outline" designator and check its properties. Ensure it's not set to exclude from PCB or locked.

5. Refresh or Restart:

   • Save your work, refresh the browser, or restart Flux.ai.

6. Adjust Layer Visibility:

   • Open the layers panel and ensure that the board outline or fab shapes layer is visible.

copilot

1. Download the KiCad Symbol: Ensure that you have the KiCad symbol file (.lib file or a .kicad_sym file) downloaded from the internet.
2. Convert the Symbol to a Format Compatible with Flux: If your KiCad symbol is in the new KiCad 6 format (.kicad_sym), you can import it directly. If it is in the older format (.lib), you may need to convert it first.
3. Importing the Symbol to Flux:

   • Open your project in Flux.
   • Navigate to the library panel and choose to import a new symbol.
   • Upload your KiCad symbol file.

4. Placing the Symbol in Your Schematic:

   • Once imported, you can search for the symbol in your Flux library.
   • Drag and drop the symbol onto your schematic.

1. Download the KiCad Symbol:

   • Locate and download the necessary KiCad symbol file from the internet.

2. Convert the Symbol (if needed):

   • To convert a .lib file to .kicad_sym, you can open the symbol in KiCad 5.x and then re-save it in KiCad 6.x to convert it automatically.
   • Alternatively, use any compatible tool or script to convert the .lib file to .kicad_sym.

3. Import the Symbol to Flux:

   • Open your Flux project in your browser.
   • Go to the Library panel. Usually, this is found on the left side of the interface.
   • Look for an option to Import Symbol or Upload Symbol.
   • Select and upload your .kicad_sym file.

4. Place the Symbol in Your Schematic:

   • After importing, the symbol will be available in your Flux library.
   • Use the search bar in the library pane to find your symbol.
   • Drag and drop the symbol onto your schematic to place it.

1. Download Symbol: Let's assume you have downloaded a KiCad symbol for a component like ESP32-WROOM-32.
2. Convert (if needed):

   • Open the symbol in KiCad 5.x if it's a .lib file.
   • Save it in KiCad 6.x to convert it to .kicad_sym.

3. Import to Flux:

   • In Flux, navigate to Library panel -> Import Symbol.
   • Upload your .kicad_sym file.

4. Place on Schematic:

   • Search for the symbol in the Flux library.
   • Drag and drop the symbol onto your schematic.

copilot

1. In active mode, the typical current consumption is approximately 400 µA.
2. In standby mode, the current consumption drops to around 1 µA.

copilot

• Active mode, typically the current consumption is around 1.2 mA (typical value).
• Shutdown mode, the current consumption drops to a very low value.

• Transceiver Active (both channels active): 1.2 mA (typical).
• Shutdown mode: < 1 µA.

suckatpcbb

copilot

1. Standby Mode: Typically consumes about 500 µA.
2. Active Mode: The current consumption can range up to 1 mA, depending on the bus capacitance and activity.

suckatpcbb

copilot

1. NAU7802:

   • Active mode: 400 µA each
   • Total for 6 NAU7802: $6 \times 400 , \mu \text{A} = 2400 , \mu \text{A} = 2.4 , \text{mA}$

2. LTC4311:

   • Active mode: Up to 1 mA each
   • Total for 6 LTC4311: $6 \times 1 , \text{mA} = 6 , \text{mA}$

3. TCA9458A:

   • Active mode: 1.2 mA

• Total current required: 9.6 mA
• Arduino Mega 5V pin supply: 500 mA (USB powered)
• Arduino Mega can safely power your 6 NAU7802, 6 LTC4311, and 1 TCA9458A without needing an external power supply.

• Ensure you account for any other peripherals connected to the Arduino.
• If you are running other high-power components, you may want to re-evaluate the total power budget.

suckatpcbb

copilot

1. Gather Specifications: Obtain the datasheet or technical drawing of the breakout board. This will provide detailed information about the physical dimensions, pin layout, and other important specifications.
2. Open Flux: Login to your Flux.ai account and open the project where you want to create the footprint.
3. Component Creation:

   • Go to the Library tab.
   • Click on "Create New Component."

4. Define Component Properties:

   • Enter basic information such as the component name, category, and description.
   • Specify the number of pins and their names (if not already listed in the datasheet).

5. Draw the Footprint:

   • Use the coordinate system to place pads or pins. Refer to the dimensions and pin spacing from the datasheet.
   • Ensure that the footprint matches the dimensions of the breakout board accurately.

6. Assign Pins:

   • Label each pin according to the datasheet.
   • Ensure you specify pin 1 correctly and follow the correct orientation.

7. Add Silkscreen and Assembly Layers (optional but recommended):

   • Draw the outline of the breakout board for better placement accuracy.
   • Add reference marks that can help in assembly and verification.

8. Save and Verify: Save the footprint and double-check to ensure all pins are accurately placed and labeled.

1. Open Flux and create a new component, naming it 10-Pin Breakout.
2. Define Properties:

   • Category: Connectors.
   • Number of pins: 10.

3. Draw Footprint:

   • Place 10 pad shapes.
   • Arrange them in two rows of 5 pins each, 0.1 inches apart.

4. Assign Pins:

   • Name the pins according to the breakout board (e.g., Pin1 to Pin10).

5. Add Silkscreen:

   • Draw the outline of the breakout board.
   • Add a marker for pin 1.

6. Save and verify accuracy.

1. Open your project and go to the library.
2. Create a New Component:

   • Fill in the basic information.

3. Add Pins:

   • Click on “Add Pin”.
   • Define the number of pins and their names (Pin_1, Pin_2, ..., Pin_10).

4. Edit Footprint:

   • Use the grid to place each pin accurately.
   • Draw the outline of the breakout board on the silkscreen layer.

5. Save the component.

copilot

1. Open Your Project in Flux.ai:

   • Navigate to your existing project where you'd like to add the new component.

2. Access the Component Library:

   • Within your project, find and click on the "Library" tab or section.
   • Look for an option like "Create New Component" or a similar action button.

3. Create the New Component:

   • Component Details:

     • Name your component appropriately.
     • Select or create a suitable category if needed.
     • Fill in other component properties like description and tags.

   • Define Pins:

     • Enter the number of pins for your breakout board.
     • Name each pin according to the breakout board’s pins (e.g., Pin_1, Pin_2, etc.).

4. Draw the Footprint:

   • Place Pads:

     • Use the provided tools to accurately place the pad shapes corresponding to the pins of the breakout board.
     • Reference the pin layout and dimensions from the datasheet.

   • Assign Pins:

     • Label each pad correctly (Pin_1, Pin_2, etc.).

   • Add Silkscreen and Outline:

     • Draw the outline of the breakout board.
     • Add silkscreen text or markers if needed, such as a designation mark for Pin 1.

5. Save the Component:

   • Save your new component within the project.

6. Verify the Footprint:

   • Double-check the dimensions and pin placements to ensure accuracy.

1. Open Your Existing Project in Flux.
2. Create New Component:

   • Click on "Library" → "Create New Component".
   • Name it "8-Pin Breakout".
   • Enter properties and click "Next".

3. Define Pins:

   • Set the number of pins to 8.
   • Name the pins as Pin_1, Pin_2, ... Pin_8.

4. Draw Footprint:

   • Use the footprint editor to place the pins.
   • For example, if pins are in a single row spaced 0.1 inches apart:

     • Pin_1: $(0, 0)$
     • Pin_2: $(0.1 \text{ inch}, 0)$
     • Pin_3: $(0.2 \text{ inch}, 0)$
     • ...

5. Add Silkscreen:

   • Draw the board outline.
   • Add a marker for Pin 1.

6. Save:

   • Click on Save and ensure your component is now in the library.

• No need to create a new project.
• Create the component within your current project using the library tools.
• Define pins, draw the footprint accurately, and save the component.

suckatpcbb
