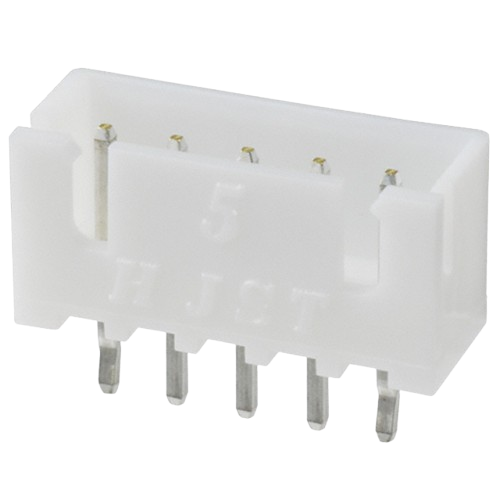

B5B-XH-A(LF)(SN) thumbnail
1x5P 5P XH Tin 5 -25℃~+85℃ 3A 1 2.5mm Brass Direct Insert Plugin,P=2.5mm Wire To Board Connector ROHS B5B-XH-A(LF)(SN) CONN-TH_B5B-XH-A-LF-SN LCSC Part Number: C157991 JLCPCB Part Class: Extended Part Manufactured by JST

Properties

Pricing & Availability

See prices from popular manufacturers for your project.

Assets

kicad_mod

B5B-XH-A(LF)(SN)/B5B-XH-A(LF)(SN).pretty/CONN-TH_B5B-XH-A-LF-SN.kicad_mod

B5B-XH-A(LF)(SN)/B5B-XH-A(LF)(SN) FootprintFootprint


B5B-XH-A(LF)(SN)-thumbThumbnail
B5B-XH-A(LF)(SN)/B5B-XH-A(LF)(SN).3dshapes/CONN-TH_XH2.50-LI-5P.step

B5B-XH-A(LF)(SN)/B5B-XH-A(LF)(SN).3dshapes/CONN-TH_XH2.50-LI-5P.step

B5B-XH-A(LF)(SN)/B5B-XH-A(LF)(SN) Model3D Model
B5B-XH-A(LF)(SN) Symbol.svg

B5B-XH-A(LF)(SN) Symbol.svg

B5B-XH-A(LF)(SN) SymbolDefault
