JST PH Connector Header Through Hole, Right Angle 4 position 0.079" (2.00mm)

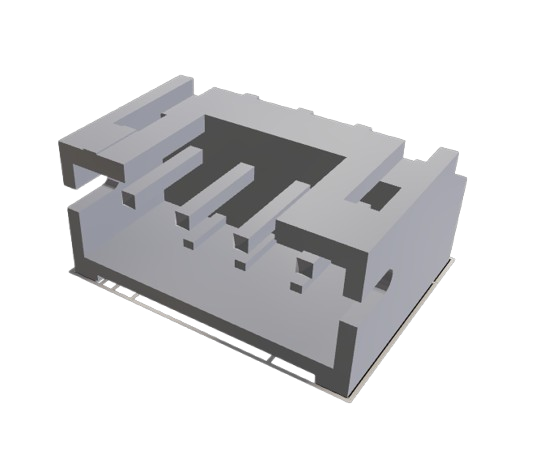

The S4B-PH-K-S(LF)(SN) is a 4-position, single-row, right-angle (side-entry) male header designed for 2.0 mm pitch wire-to-board connections. It is a through-hole mounted, shrouded connector that ensures reliable and secure mating with compatible PH series housings and crimp terminals.
This connector is commonly used in consumer electronics, embedded systems, power supplies, and industrial control boards, especially where space-saving and dependable connections are required.
Key Features
Connector Type: Shrouded male header (wire-to-board)
Number of Positions: 4 pins (single row)
Pitch: 2.0 mm
Orientation: Right-angle (side entry)
Mounting Type: Through-hole (THT)
Termination: Solder
Electrical Characteristics
Rated Voltage: 100 V
Rated Current: 2 A per contact
Insulation Resistance: ≥1000 MΩ
Contact Resistance: Low (typically ≤10–20 mΩ)
Mechanical & Material
Contact Material: Brass / phosphor bronze with tin plating
Housing Material: PA66 (Nylon), UL94 V-0 flame rated
Locking Mechanism: Detent lock for secure mating
Shrouded Design: Prevents misalignment and protects pins
Environmental
Operating Temperature: −25 °C to +85 °C
