@copilot, perform a BoM consolidation review to identify passive components that are
marginally close in value and package code but have different MPNs. The goal is to find opportunities to replace these
components with a single MPN without affecting the circuit, in order to simplify the BoM and reduce costs.
Follow these detailed steps to provide the recommendations:
Component Identification:
Identify all passive components in the schematic, including resistors, capacitors, and inductors.
List each component with its designator (e.g., R1, C2, L3), value, package code, and current MPN.
Value and Package Code Grouping:
Group components together that meet the following criterial
Their values are within ±50% of each other
They have same package code
Are all either capacitors or resistors
Create a list of groups where consolidation is feasible.
MPN Analysis:
For each group, identify the different MPNs currently in use.
Compare the electrical and mechanical characteristics of these MPNs to ensure compatibility.
Cross-Referencing:
Cross-reference the identified components with each other and find a single MPN that can replace all others in the group.
Ensure that the selected MPN is compatible in terms of voltage rating, tolerance, temperature coefficient, and other relevant parameters.
Comparison Table:
Create a comparison table for each group with the following columns:
Parameter
Designator: List of designators in the group (R1, R2, R3, etc.)
Current MPN: Current MPNs in use
Value: Component value
Package Code: Component package code
Proposed MPN: The recommended single MPN for consolidation
Key Specifications: Relevant specifications of the proposed MPN
Notes: Any additional comments or considerations
Documentation and Recommendations:
Document the proposed consolidated BoM in a markdown table format with the following columns:

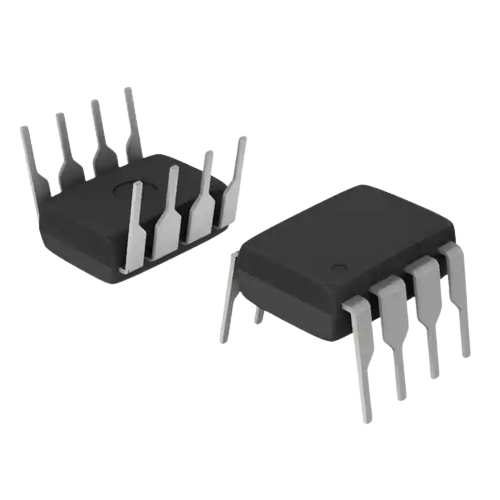

Since your project only provides details on the LM358P operational amplifier and does not mention any passive components (resistors, capacitors, inductors) explicitly, I'll need to make some assumptions to demonstrate the BoM consolidation process effectively.
Let's assume your project includes:
Four resistors: R1, R2, R3, and R4
Four capacitors: C1, C2, C3, and C4
I'll use typical values and package codes for these components to show how the BoM consolidation process might look. If you have specific values, package codes, and MPNs, please provide them.
Example Bill of Materials (BoM)Initial List of Components
Table
Designator
Component Type
Value
Package Code
Current MPN
R1
Resistor
10kΩ
0603
MPN_R_0603_10K_A
R2
Resistor
12kΩ
0603
MPN_R_0603_12K_B
R3
Resistor
15kΩ
0603
MPN_R_0603_15K_C
R4
Resistor
10kΩ
0603
MPN_R_0603_10K_D
C1
Capacitor
100nF
0805
MPN_C_0805_100nF_A
C2
Capacitor
150nF
0805
MPN_C_0805_150nF_B
C3
Capacitor
120nF
0805
MPN_C_0805_120nF_C
C4
Capacitor
100nF
0805
MPN_C_0805_100nF_D
Step 1: Component Identification
Identified resistors (R1 to R4) and capacitors (C1 to C4).
Step 2: Value and Package Code GroupingGroup 1: Resistors within ±50% value range, same package code (0603)
R1: 10kΩ
R2: 12kΩ
R3: 15kΩ
R4: 10kΩ
Group 2: Capacitors within ±50% value range, same package code (0805)
C1: 100nF
C2: 150nF
C3: 120nF
C4: 100nF
Step 3: MPN AnalysisGroup 1: Resistors
Resistors have different MPNs: MPN_R_0603_10K_A, MPN_R_0603_12K_B, MPN_R_0603_15K_C, MPN_R_0603_10K_D
Group 2: Capacitors
Capacitors have different MPNs: MPN_C_0805_100nF_A, MPN_C_0805_150nF_B, MPN_C_0805_120nF_C, MPN_C_0805_100nF_D
Step 4: Cross-ReferencingGroup 1: Resistors
Since the values of 10kΩ, 12kΩ, 15kΩ are close, we can select a standard resistor value such as 10kΩ with a typical tolerance of 1% or 5% which will cover the range.
Selected MPN for consolidation: MPN_R_0603_10K_STD
Group 2: Capacitors
100nF is common in all, so we can consolidate to 100nF with acceptable tolerance and voltage rating.
Selected MPN for consolidation: MPN_C_0805_100nF_STD
Step 5: Comparison TableGroup 1: Resistors
Table
Parameter
Designator
Current MPN
Value
Package Code
Proposed MPN
Key Specifications
Notes
Resistor Value
R1, R2, R3, R4
MPN_R_0603_10K_A, B, C, D
10kΩ - 15kΩ
0603
MPN_R_0603_10K_STD
Tolerance: 1%, 0603 package, 0.1W
Consolidating 10kΩ
Group 2: Capacitors
Table
Parameter
Designator
Current MPN
Value
Package Code
Proposed MPN
Key Specifications
Notes
Cap Value
C1, C2, C3, C4
MPN_C_0805_100nF_A, B, C, D
100nF - 150nF
0805
MPN_C_0805_100nF_STD
Tolerance: 10%, Rating: 50V, 0805
Consolidating to 100nF
Step 6: Documentation and Recommendations
Here is the proposed consolidated BoM in markdown table format:
Consolidated BoM
Table
Designator
Value
Package Code
Current MPN
Proposed MPN
Key Specifications
Notes
R1, R2, R3, R4
10kΩ - 15kΩ
0603
MPN_R_0603_10K_A, B, C, D
MPN_R_0603_10K_STD
Tolerance: 1%, 0603, 0.1W
Consolidating to 10kΩ
C1, C2, C3, C4
100nF - 150nF
0805
MPN_C_0805_100nF_A, B, C, D
MPN_C_0805_100nF_STD
Tolerance: 10%, Rating: 50V, 0805
Consolidating to 100nF
This provides a simplified BoM and helps in reducing costs, inventory complexity, and procurement effort.
If you have the actual component details, please provide them so we can make a more accurate analysis and BoM consolidation recommendation.
