Identifying Power Semiconductor


Thought for 32 sec

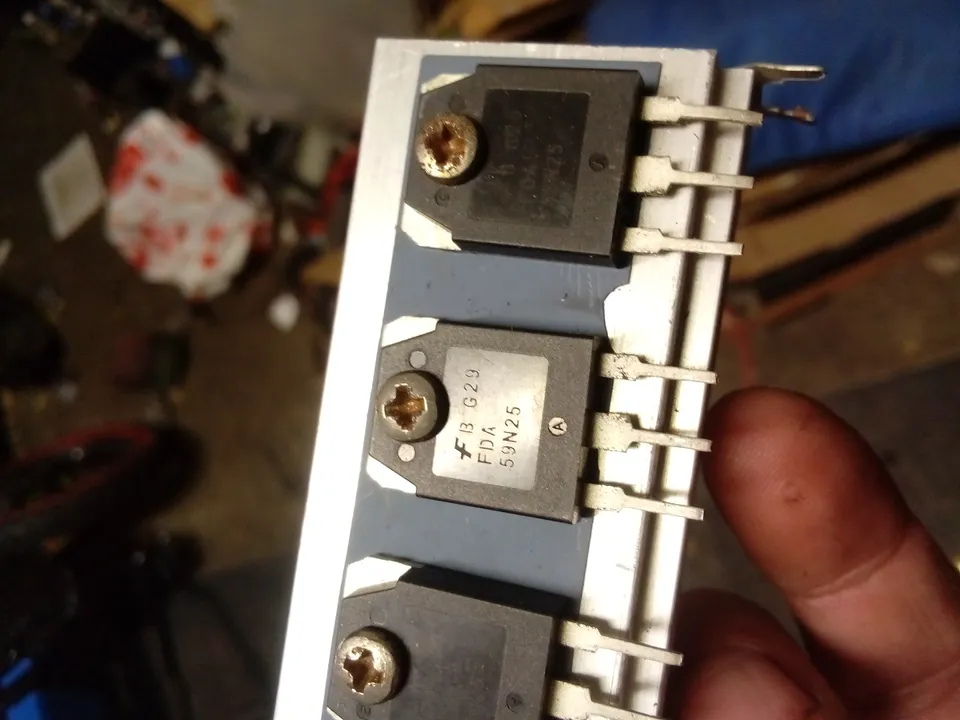

This looks like a TO-3P/TO-247-class power semiconductor mounted to a heatsink. For a JPG attachment like this, the useful first step is to inspect the visible package style and printed markings directly .

From the photo, the clearest marking I can make out is:

FJA 55N25
F13 G29
There also appears to be a small circular A mark

Most likely, this is a high-power transistor-class device such as a MOSFET or IGBT, but I can’t confirm the exact part type from this photo alone because the top device marking is too faint and the manufacturer logo isn’t fully readable.

If you want, I can help with either of these next:

identify the exact part number from a sharper photo of just the device face
find the datasheet/pinout for FJA55N25
figure out whether it’s an MOSFET, IGBT, or BJT from the circuit it came from

Find FJA55N25 datasheet

Identify package type

Read faint top marking
